USB C Dock - Dual Monitor HDMI & DisplayPort 4K 30Hz - USB Type-C Laptop Docking Station 60W Power

Part # DK30CHDDPPDUPC 065030868242Warranty: 3 Years2.8 lb

Dual monitor 4K 30Hz HDMI + DisplayPort USB-C dock/4x USB-A (incl BC 1.2 fast charge)/Gigabit Ethernet/3.5mm Audio/60W Power Delivery
Supports 2 extended displays on MacBooks w/ Intel or Apple M1/M2 chip
USB C docking station w/SD/SDXC card reader works w/ Windows File History/MacOS Time Machine

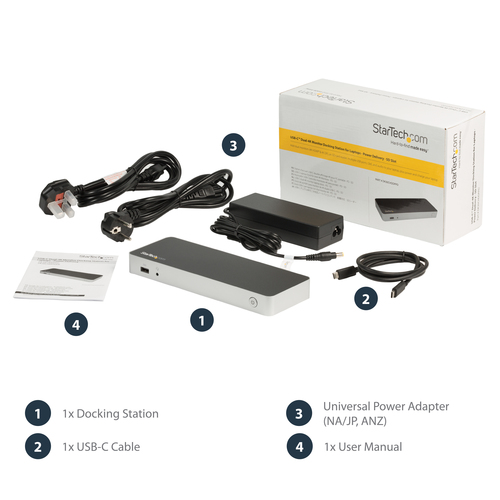

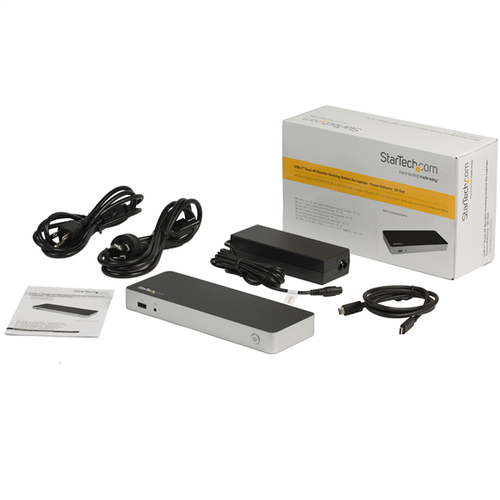

3.3' USB-C host cable and MAC Address Changer utility
For Thunderbolt 3 and USB-C laptops/Ultrabooks/Chromebooks like ThinkPad T Series X1 Carbon Surface Pro 7
Windows/Ubuntu/Chrome/macOS

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

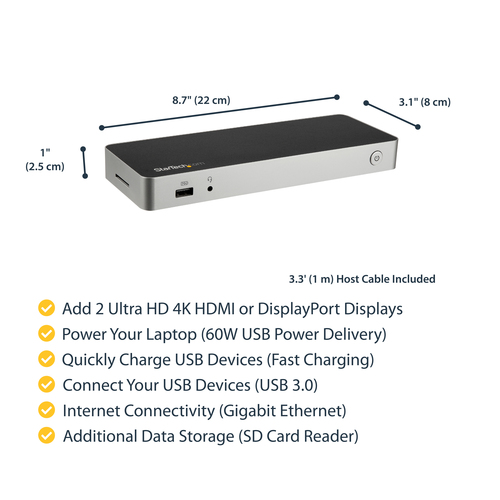

Add dual monitors (4K HDMI® & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptop

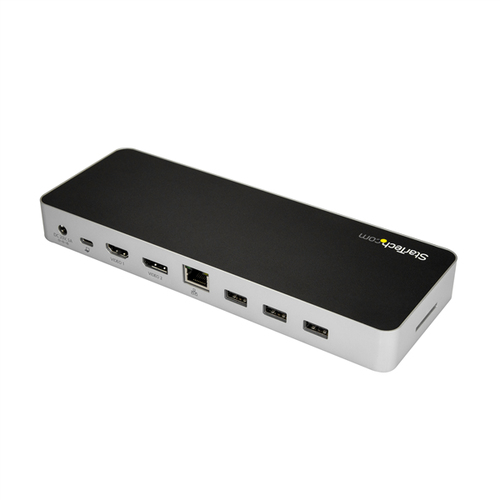

This dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.

The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.

Create a dual-4K video workstation

The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:

• 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz

• 1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

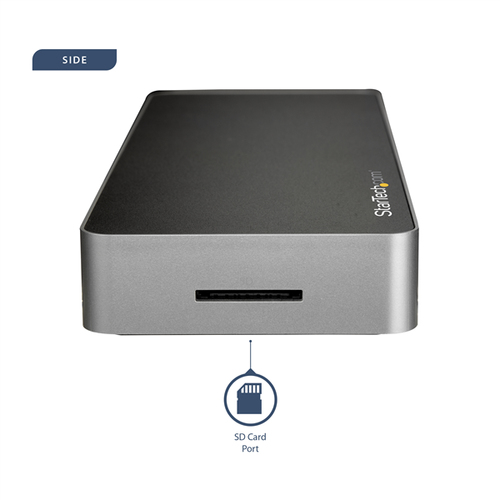

SD card reader

The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

Ample connections

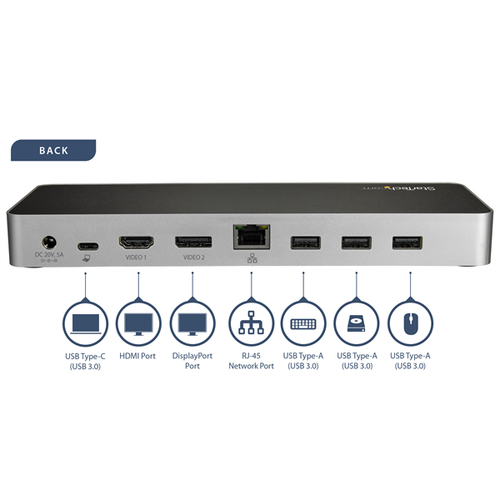

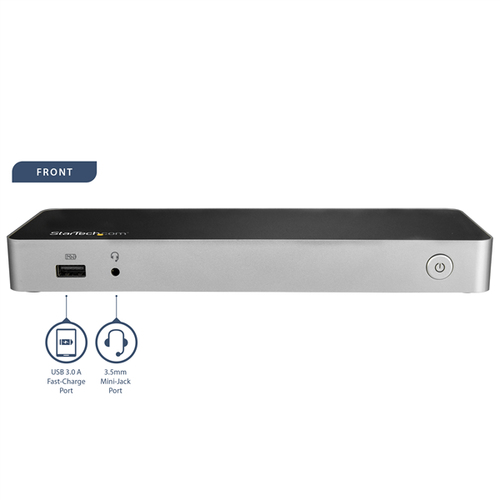

The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.

Universal support

Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The DK30CHDDPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 60 W
HDMI ports quantity: 1
DisplayPorts quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes
10G support: No

Performance

Card reader integrated: Yes
Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black, Silver
On/off switch: Yes
UASP support: Yes
Housing material: Plastic
Certification: CE, FCC, REACH

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2 A
Power supply type: External
Output voltage: 20 V
Output current: 5 A
Compatible power plug types: AU, JP, US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS
