StarTech.comLaptop Docks & Port Replicators

4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort

Part # DK30CH2DPPDUPC 065030867672Warranty: 3 Years3.1 lb

USB-C dock connects your USB-C laptop to triple 4K monitors: 2x DisplayPort (DisplayLink) 1x HDMI (DP Alt Mode)
Triple 4K monitor USB Type C dock for Dell XPS and other USBC laptops
5x downstream USB 3.0 ports (1x USB-C and 4x USB-A) plus 60W Power Delivery and Ethernet
Windows/ChromeOS/macOS
Supports up to 3 extended displays on Macbook Pro/Air w/ Intel processor or Apple M1/M2 chip
Connects to USB 3.0 laptops with a USB-A port using a USB-C to A cable (sold separately)

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

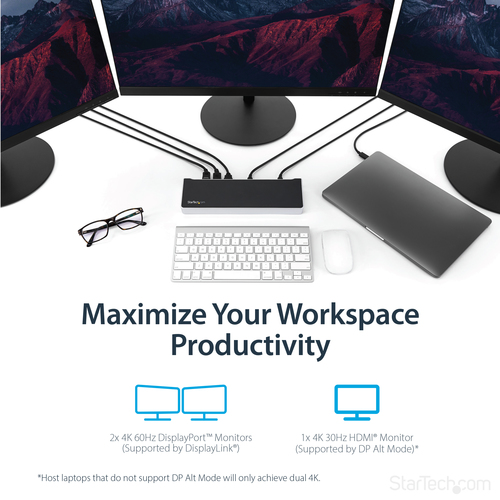

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and

1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

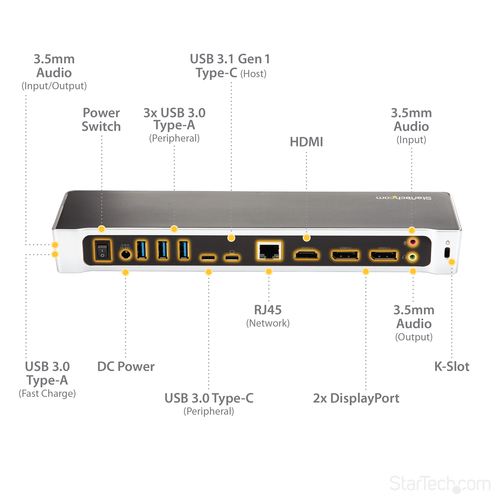

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
HDMI ports quantity: 1
DisplayPorts quantity: 2
Microphone in: Yes
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Cable lock slot: Yes
Product colour: Black, Silver
On/off switch: Yes
UASP support: Yes
Housing material: Plastic
Brand compatibility: Any brand
Certification: CE, FCC, TAA, REACH

Power

AC input voltage: 100 - 240 V
Input current: 2 A
Power supply: 60 W
Output voltage: 20 V
Output current: 6 A
Power plug type: Type N
Compatible power plug types: AU, JP

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 82 mm
Depth: 270 mm
Height: 34 mm
Weight: 385 g

Packaging data

Package width: 161 mm
Package depth: 296 mm
Package height: 71 mm
Package weight: 1.4 kg

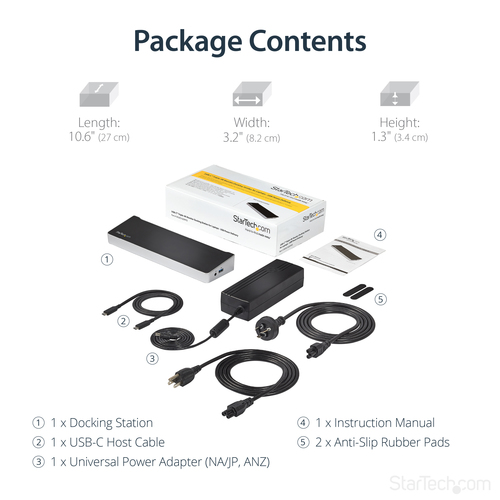

Packaging content

Cables included: USB Type-C
AC adapter included: Yes
Manual: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 318 mm
Master (outer) case length: 370 mm
Master (outer) case height: 382 mm

Other features

Chipset: DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176
Number of microphone inputs: 1
