USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port

Part # DK30ADDUPC 065030871440Warranty: 3 Years1.7 lb

Dual monitor USB 3.0 docking station with HDMI and DVI or VGA / 6x USB 3.1 Gen 1 Type-A 5Gbps ports / GbE / audio / incl. 1m USB-A host cable
Mixed multi monitor connectivity: HDMI + DVI or HDMI + VGA (incl. DVI to VGA Adapter)
DisplayLink certified and works w/ laptop brands like HP Dell Lenovo MacBook Surface Book / Pro 6 and Chromebooks
Universal USB Type-A dock for Windows macOSx ChromeOS
2x always-on BC 1.2 (1.5A) fast-charge USB-A ports that charge without a connected computer

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter

This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.

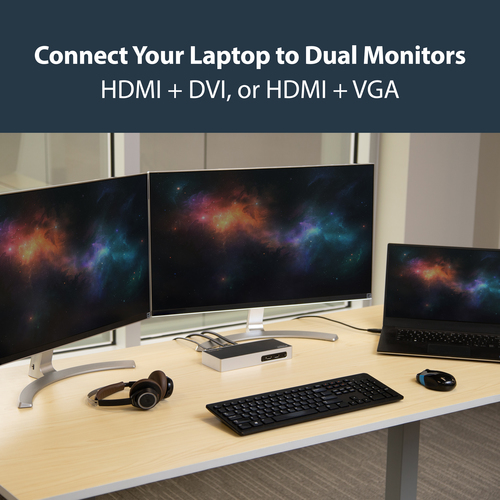

Enhance Productivity with Dual Video

The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.

With the dual-monitor dock, you can connect:

• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz

• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz

All the Connections You Need

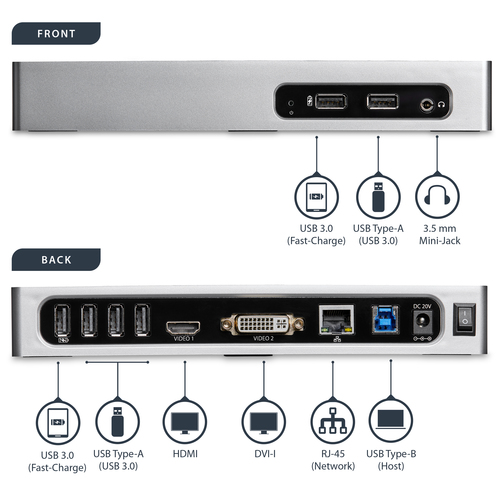

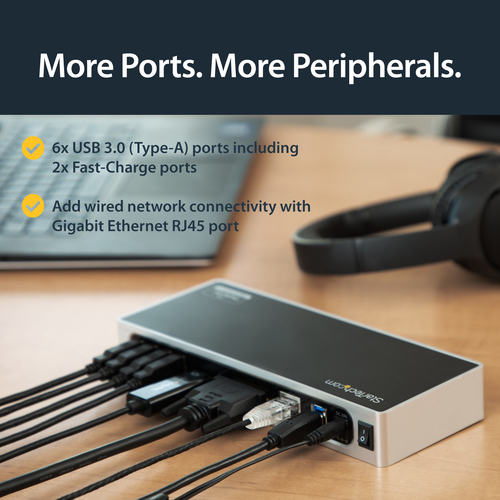

Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.

DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
HDMI ports quantity: 1
DVI-I ports quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 2048 x 1152 pixels
Number of displays supported: 2
Product colour: Black, Silver
On/off switch: Yes
LED indicators: Power
UASP support: Yes
Housing material: Plastic
Brand compatibility: Any brand
Certification: CE, FCC, DisplayLink, REACH

Power

Power source type: AC
AC input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 20 V
Output current: 2 A
Power consumption (typical): 40 W
Power plug type: Type N
Compatible power plug types: AU, EU, JP, UK, US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
