Thunderbolt 5 Universal Docking Station for Mac & Windows with Quad Monitors, 140W Power Delivery

Part # 206N-TB5USB4DOCKUPC 065030921862Warranty: 3 Years10.05 lb

Thunderbolt Certified, USB4 Compatible Dock provides driverless compatibility with Windows 11 and macOS 15 / 26
Dual 6K on MacBook Pro/Max models
Triple 4K 120Hz on MacBook Pro M5 Pro
Quad 4K displays daisy chaining 2 Thunderbolt monitors with M5 Max
Up to four extended 4K 60Hz displays on Windows via HDMI and DisplayPort
180W power adapter to charge high-powered 140W laptops (such as MacBook Pro) and power all ports

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation

Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.

Advanced Display and Charging Capabilities

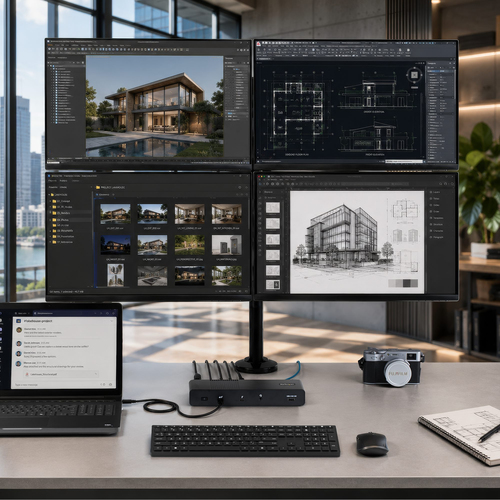

Connect up to four extended 4K 60Hz displays on Windows using HDMI and DisplayPort outputs. On Mac, support dual 6K on MacBook Air and entry MacBook Pro, up to Triple 4K 120Hz on MacBook Pro with M5 Pro, or Quad 4K displays when daisy chaining 2 Thunderbolt monitors with M5 Max. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro. A dedicated 45W Thunderbolt 5 port provides data connectivity and charging for phones or tablets without drawing power from the host computer.

Networking and Compatibility

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.

Secure and High-Functioning Workspace

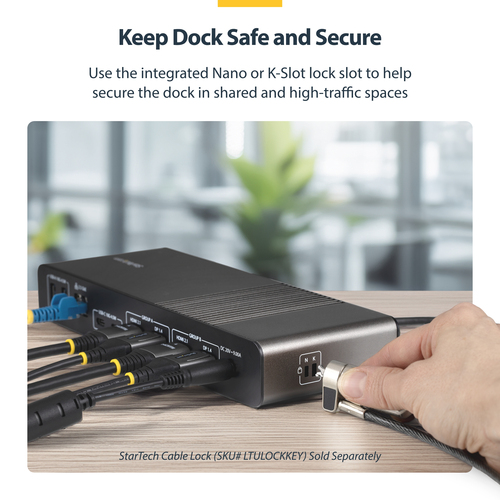

Dual security slots (K-Slot and Nano) let you physically secure the dock, helping prevent theft in shared environments or high-traffic workspaces. Connect high-performance peripherals through the downstream Thunderbolt port with up to 80Gbps/120Gbps bandwidth, while delivering up to 45W Power Delivery for fast device charging. Use the 3.5mm audio jack to connect headsets or speakers for seamless conferencing or media playback.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.

Download the StarTech.com Connectivity Tools to optimize your device setup .

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 140 W
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Thunderbolt 5 ports quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Wake-on-LAN ready: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 80 Gbit/s
HD type: 4K DCI
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 4
Maximum refresh rate: 240 Hz
Cable lock slot: Yes
Cable lock slot type: Nano, Kensington
Product colour: Black, Grey
On/off switch: Yes
LED indicators: LAN, Power, Link, Activity
UASP support: Yes
Housing material: Plastic

Power

Output voltage: 20 V
Output current: 9 A
Power consumption (max): 180 W
Compatible power plug types: US

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 92 mm
Depth: 243 mm
Height: 353 mm
Weight: 730 g

Packaging data

Package width: 262 mm
Package depth: 169 mm
Package height: 90 mm
Package weight: 1.12 kg

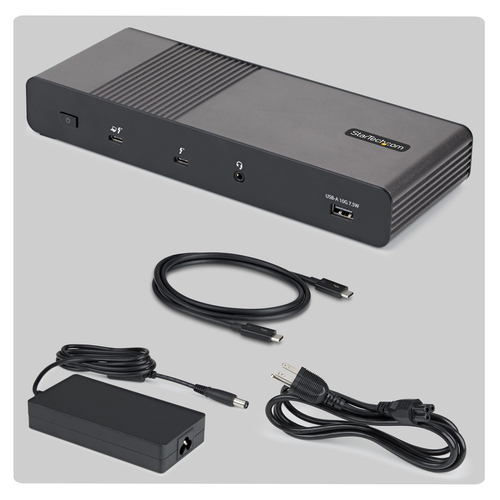

Packaging content

Cables included: Thunderbolt
AC adapter included: Yes

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)

Logistics data

Products per master (outer) case: 6 pc(s)
Master (outer) case width: 395 mm
Master (outer) case length: 315 mm
Master (outer) case height: 300 mm

Other features

Chipset: Intel - JHL9480 (Barlow Ridge), Synaptics - VMM6210, Synaptics - VMM6210, Infineon - CYPM1322, VIA Labs - VL822, VIA Labs - VL822, VIA Labs - VP226, VIA Labs - VP226, Realtek - RTL8156B, Fresco Logic - FL8501, Realtek - ALC4032
