StarTech.comLaptop Docks & Port Replicators

Dual-Monitor USB-C Docking Station, DisplayPort, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless

Part # 201N-USBC-DOCKUPC 065030921848Warranty: 3 Years2.3 lb

Connect two 4K 60Hz DisplayPort displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU
Plug-and-play on Windows with no drivers or software to install (not compatible with macOS / ChromeOS)
4× USB-A 5Gbps and 2× USB-C 10Gbps ports (one with 15W PD)
Gigabit Ethernet port
Multi-monitor dock features built-in lock slots for physical security
Surface and VESA mounting accessories sold separately: SSPMSUDWM / DOCK-NUC-VESA-MOUNT / SSPMSVESA

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

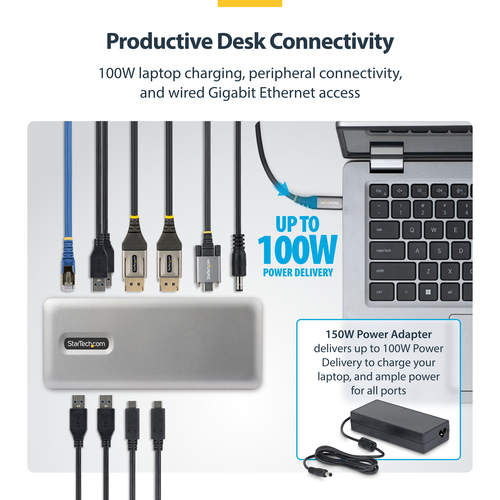

Transform a USB-C laptop into a dual-monitor workstation with DisplayPort video and USB-A and USB-C ports

Connect up to two 4K 60 Hz DisplayPort displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect up to two 4K 60Hz DisplayPort displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

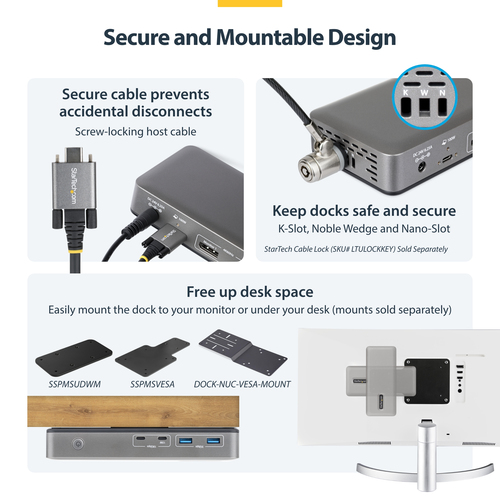

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
DisplayPorts quantity: 2
Microphone in: No
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 10 Gbit/s
Number of displays supported: 2
Cable lock slot: Yes
Cable lock slot type: Kensington, Nano, Noble, Wedge
Product colour: Grey
On/off switch: Yes
LED indicators: Power
Plug and Play: Yes
Housing material: Plastic

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 24 V
Output current: 6.25 A
Power consumption (max): 150 W
Compatible power plug types: US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported: Ubuntu 24.04 LTS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): 10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 79 mm
Depth: 190 mm
Height: 27 mm
Weight: 300 g

Packaging data

Package width: 250 mm
Package depth: 205 mm
Package height: 50 mm
Package weight: 1 kg

Packaging content

Cables included: USB
AC adapter included: Yes
User guide: Yes

Technical details

Compliance certificates: Federal Communications Commission (FCC), RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 430 mm
Master (outer) case length: 270 mm
Master (outer) case height: 280 mm

Other features

Chipset: Synaptics - VMM5220, VIA Labs - VL103R, VIA Labs - VL171, VIA Labs - VL822-Q8T, VIA Labs - VL817-Q7S, VIA Labs - VP226, Realtek - RTL8153E
