USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD Card Slot

Part # 177B-USBC-MULTIPORTUPC 065030904162Warranty: 3 Years0.3 lb

Transform one USB-C port into 4K 60Hz HDMI / 140W USB-C PD passthrough / USB data ports
Use the USB-C input for up to 140W power delivery pass-through charging or 10Gbps data
Add two USB-A 10Gbps ports to expand laptop connectivity
2.5Gb Ethernet connectivity offers wired performance for file transfers and cloud-based workflows where wireless latency / security policies disrupt productivity
SD Card slot for fast transfers from memory cards

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Create a mobile workstation wherever you work with a single 4K 60Hz HDMI display, 2x USB-A 10Gbps ports, 2.5Gbps Ethernet, an SD Card slot, and 140W USB Power Delivery 3.1 pass-through for laptop charging

Turn a single USB-C port into a complete mobile workstation with video, power, data, storage, and wired networking in one compact adapter.

Deploy Clean, Clutter-Free Workstations Anywhere

Transform one USB-C port into 4K 60Hz HDMI, 140W Power Delivery passthrough, and multiple USB ports. Reduce dongles in shared desks, hoteling spaces, travel kits, and field deployments. Standardize on one adapter to simplify provisioning and support across laptop deployments.

Power High-Performance and AI-Ready Laptops

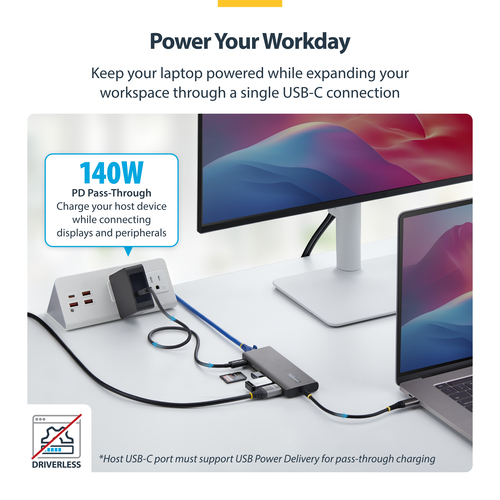

Deliver up to 140W USB-C Power Delivery passthrough to support demanding workloads and high-performance systems. When power is not required, enable up to 10Gbps USB-C data transfer for fast external drives and peripherals. Give users flexible power or data based on their task and setup.

Expand Connectivity and Strengthen Network Performance

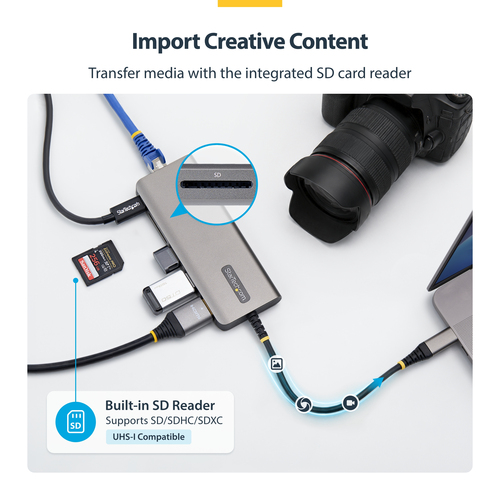

Access SD 3.0 UHS-I media for file transfers and connect phones, tablets, and storage through two 10Gbps USB-A ports. Add 2.5GbE for reliable wired networking in environments where Wi-Fi congestion, latency, or security policies impact productivity.

Built for Sustainability, Designed for Performance

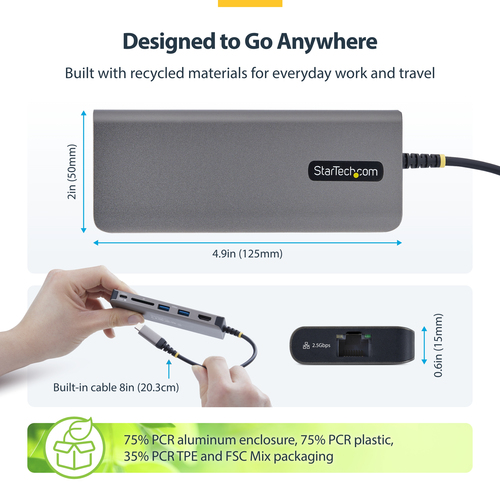

This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.2
USB Power Delivery up to: 140 W
HDMI ports quantity: 1
HDMI version: 2.0
Microphone in: No
USB Type-C DisplayPort Alternate Mode: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Full duplex: Yes

Performance

Card reader integrated: Yes
Compatible memory cards: SD
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 1
Product colour: Grey
UASP support: Yes
Housing material: Aluminium, Plastic
Mean time between failures (MTBF): 28434 h

Power

Power source type: USB
Power consumption (max): 20 W
USB cable length: 0.12 m

Software

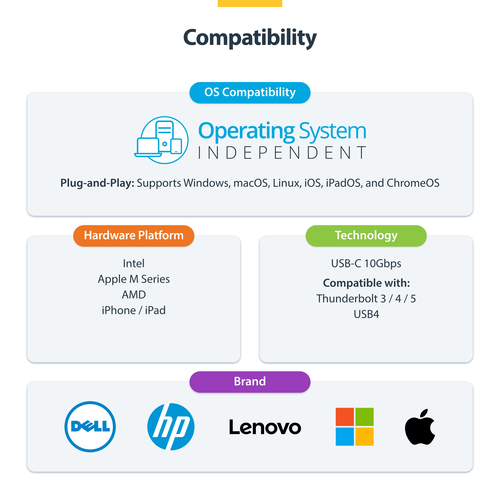

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported: Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe
Linux operating systems supported: Yes
Mobile operating systems supported: iPadOS, iOS
