Home/Catalogue/Eaton/EMAU06-10
Drag to turn · 2 views
EatonPower Distribution Units (PDUs)

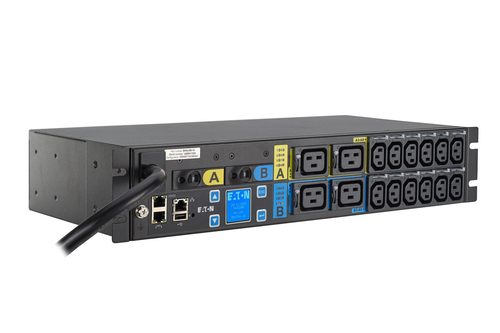

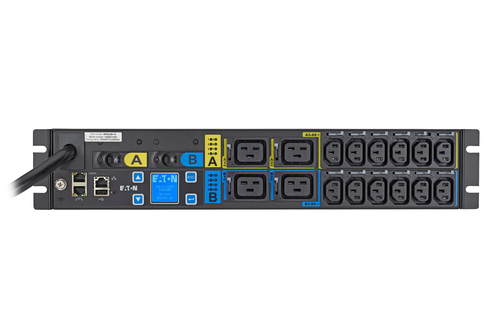

EA MA PDU 2U, L630P Input, Outlets: 12
- Single-phase Managed 2U Black
- LCD
- 16 AC outlet(s) C13 coupler, C19 coupler
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Design
- PDU types
- Managed
- Type
- Single-phase
- Rack capacity
- 2U
- Mounting
- Horizontal
- Product colour
- Black
- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 16 AC outlet(s)
- Power plug
- NEMA L6-30P
- AC outlet types
- C13 coupler, C19 coupler
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 200-240 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 24 A
- Number of phases
- 1
Certificates
- Certification
- UL Listed
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 86 mm
- Depth
- 482.6 mm
- Height
- 127 mm
- Weight
- 6.03 kg
Logistics data
- Warranty period
- 3 year(s)
