EatonUninterruptible Power Supplies (UPSs)

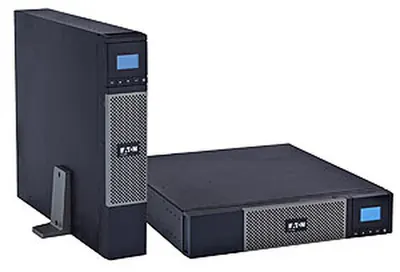

7181 Eaton Nema 3KVA 120 120V
- 3 kVA 2700 W
- 7 AC outlet(s)
- Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Efficiency:
The Eaton 5P provides industry leading efficiency of up to 99 percent.
Manageability:
- Energy metering: The 5P meters energy consumption at the UPS level.
01
- UPS management: By integrating Eaton’s free
Intelligent Power Software Suite, you can monitor and manage the power devices on your network.
LCD display:
Eaton’s next generation LCD offers a graphical interface which provides all critical UPS information in a single screen view.
More power:
The 5P protects more devices by providing 28 percent more wattage compared to traditional UPSs.
Battery life:
Eaton’s exclusive ABM technology increases battery service life by 50 percent.
Specifications
Features
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Input operation voltage (min)
- 89 V
- Input operation voltage (max)
- 151 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 102 V
- Output operation voltage (max)
- 132 V
- Efficiency
- 99%
- Power factor
- 0.9
- Noise level
- 50 dB
Ports & interfaces
- AC outlet types
- NEMA 5–20R, NEMA L5-30R
- AC outlets quantity
- 7 AC outlet(s)
- USB 2.0 ports quantity
- 1
- RS-232 ports
- 1
Battery
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Tower
- Cable length
- 3 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 50 °C
- Non-operating altitude
- 0 - 3000 m
Certificates
- Certification
- FCC Part 15 subpart B Class A
Safety regulation & standards
- Safety
- UL1778, UL497A, cUL
Weight & dimensions
- Width
- 441 mm
- Depth
- 647 mm
- Height
- 86 mm
- Weight
- 40 kg
Other features
- Battery type
- 12V, 9Ah
- Output connections
- 1 x L5-30R & 6 x 5-20R
- Input connection type
- L5-30P
- Nominal input voltage
- 120 V
