Home/Catalogue/Eaton/5PX3000RTNG2
Drag to turn · 4 views
EatonUninterruptible Power Supplies (UPSs)

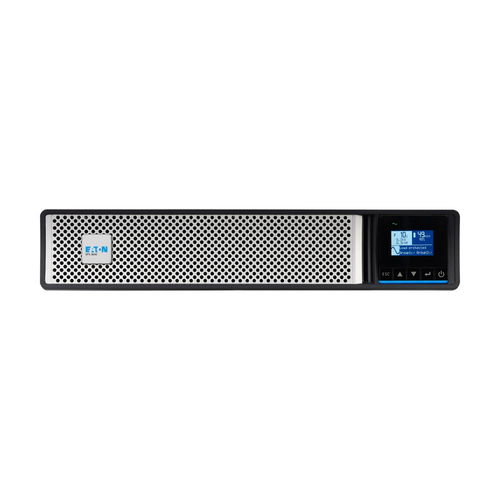

5PX G2 UPS 2U 3000 VA 3000W
- Line-Interactive
- 3 kVA 3000 W
- 7 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black, Silver
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
5PX3000RTNG2

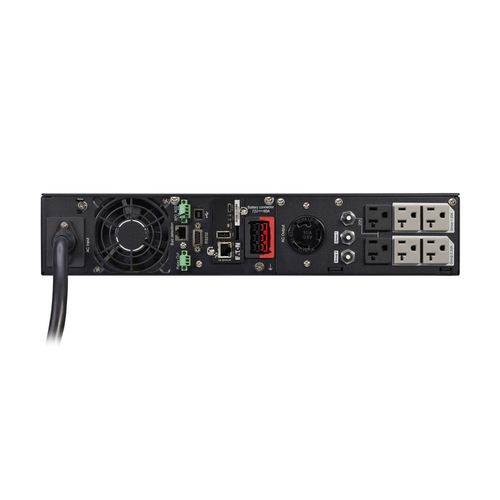

Eaton 5PX G2 UPS, 2U, 3000 VA, 3000 W, L5-30P input, Outputs: (1) L5-30R, (6) 5-20R, 120V, Network card
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Input operation voltage (max)
- 120 V
- Input frequency
- 50/60 Hz
- Heat dissipation
- 1136 BTU/h
- Efficiency
- 98%
Ports & interfaces
- AC outlet types
- NEMA L5-30R, NEMA 5-20R
- Power plug
- NEMA L5-30P
- AC outlets quantity
- 7 AC outlet(s)
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 9 min
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black, Silver
- Display type
- LCD
Certificates
- Compliance certificates
- CE, REACH, cULus, RoHS, BSMI
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable, RS-232
- Manual
- Yes
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 436.8 mm
- Depth
- 601.9 mm
- Height
- 86.3 mm
- Weight
- 33.8 kg
