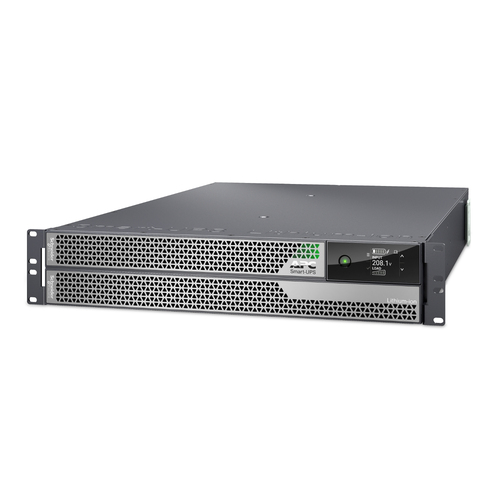

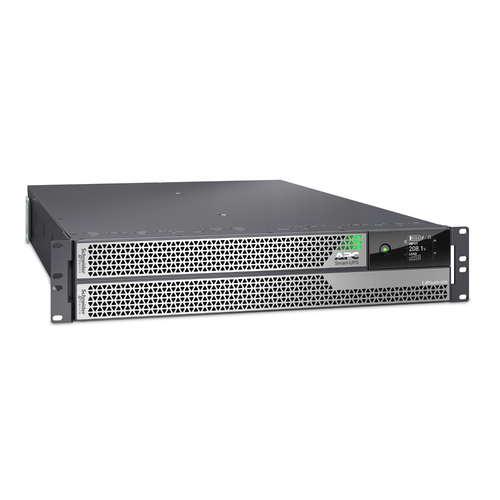

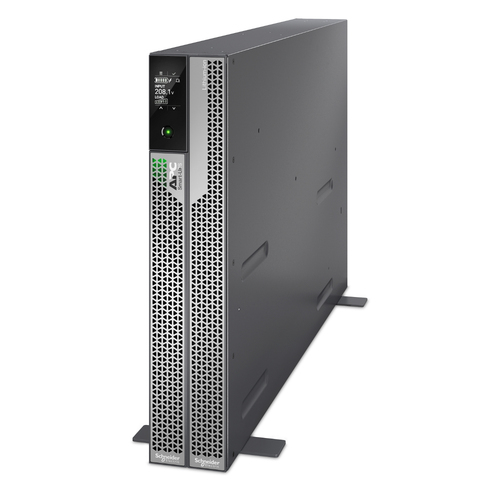

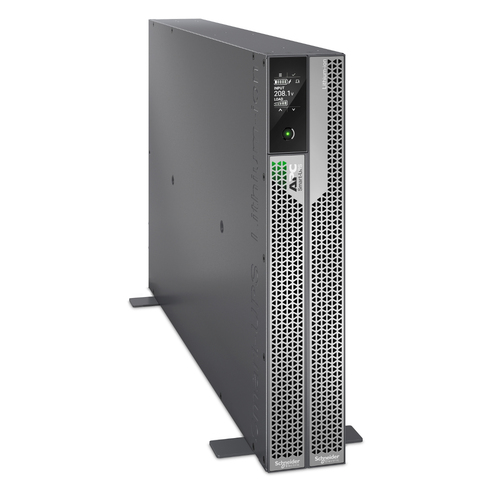

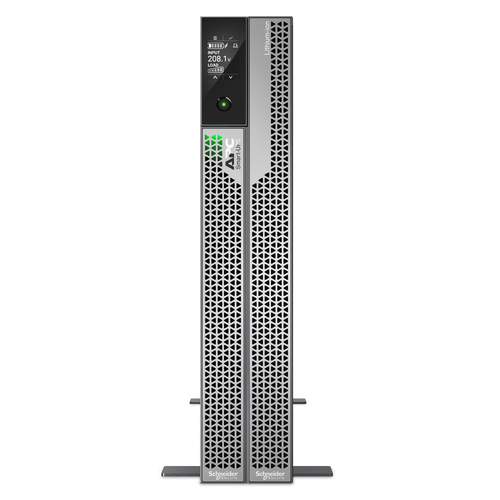

Smart-UPS Online Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V
- Double-conversion (Online)
- 4.9 kVA 4900 W
- Waveform: Sine
- 4 AC outlet(s)
- Lithium-Ion (Li-Ion) 180 V
- Rackmount Silver
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 4.9 kVA
- Output power
- 4900 W
- Waveform
- Sine
- Input operation voltage (min)
- 208 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 1260 J
- Heat dissipation
- 1047 BTU/h
- Crest factor
- 3:1
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
Ports & interfaces

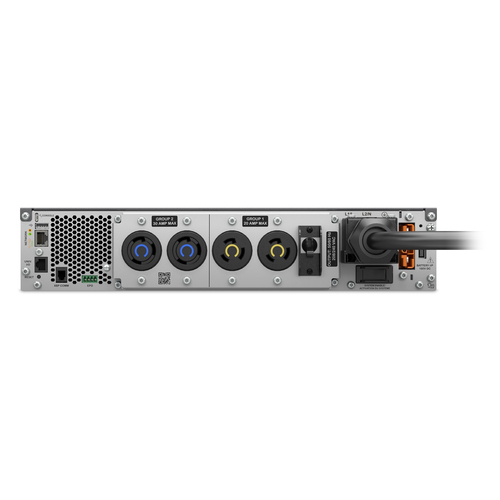

- AC outlet types
- NEMA L6-20R, NEMA L6-30R
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery voltage
- 180 V
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 12 min
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 1.5 h
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 3.05 m
- Product colour
- Silver
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 701 mm
- Height
- 86 mm
- Weight
- 29.2 kg
Packaging data
- Package width
- 585 mm
- Package depth
- 984 mm
- Package height
- 392 mm
- Package weight
- 38.5 kg
