EatonPower Distribution Units (PDUs)

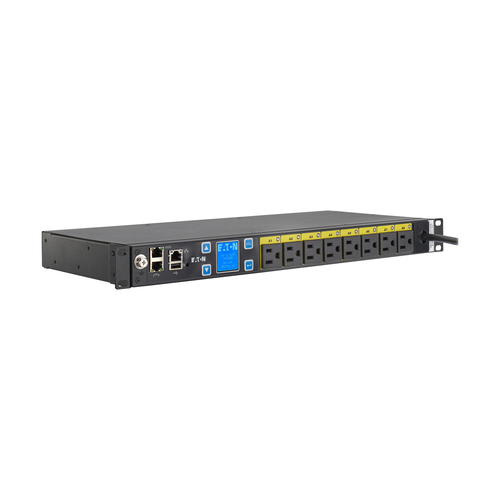

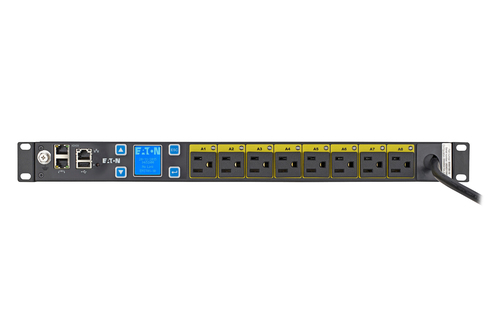

Epdu MA 1U in: 5-15P 12A 1P Out: 8X5-15R
- Single-phase Managed 1U Black
- LCD
- 8 AC outlet(s) NEMA 5-15R
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Design
- PDU types
- Managed
- Type
- Single-phase
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
- Display
- LCD
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- NEMA 5–15P
- AC outlet types
- NEMA 5-15R
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 12 A
- Number of phases
- 1
Certificates
- Certification
- UL Listed
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 43 mm
- Depth
- 482.6 mm
- Height
- 203 mm
- Weight
- 3.13 kg
Logistics data
- Warranty period
- 3 year(s)
