Home/Catalogue/Eaton/EMA374-10
EatonPower Distribution Units (PDUs)

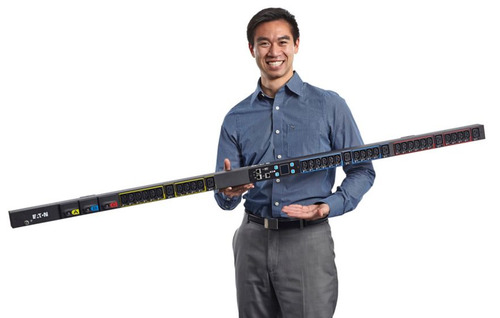

Managed PDU, 3PH, 0U, IEC 60309 input, 10 ft cord, 17.3kW, 32A, 240/415V, 48 Outlets (48) C13
- Three-phase Managed 0U Black
- 48 AC outlet(s) C13 coupler
- 17300 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton Managed PDU, 3PH, 0U, IEC 60309 input, 10 ft cord, 17.3kW, 32A, 240/415V, 48 Outlets (48) C13.
Specifications
Design
- PDU types
- Managed
- Type
- Three-phase
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 48 AC outlet(s)
- Power plug
- IEC 60309
- AC outlet types
- C13 coupler
- Communication ports
- RS-232
- RS-232 ports
- 1
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 240 - 415 V
- AC input frequency
- 50/60 Hz
- Maximum current
- 32 A
- Maximum power
- 17300 W
Certificates
- Compliance certificates
- UL
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 104 mm
- Depth
- 1829 mm
- Height
- 53 mm
- Weight
- 8.48 kg
