Home/Catalogue/Eaton/EMA112-10
EatonPower Distribution Units (PDUs)

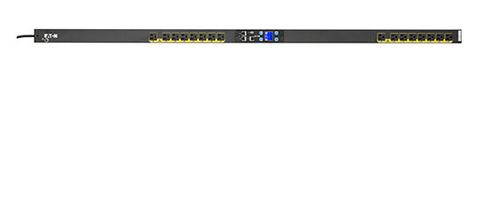

Epdu MA 36U-C in: 5-15P 12A 1P Out: 16X5-15R
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton Managed ePDUs allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Integrated with Eaton's management software, you can control these units from any computer on the network server.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 36U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 16 AC outlet(s)
- Power plug
- NEMA 5–15P
- AC outlet types
- NEMA 5–20R
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 12 A
Certificates
- Certification
- UL
Weight & dimensions
- Width
- 52 mm
- Depth
- 65 mm
- Height
- 1689.1 mm
Packaging data
- Package width
- 195.6 mm
- Package depth
- 236.2 mm
- Package height
- 1971 mm
Downloads
