Drag to turn · 4 views
EatonPower Distribution Units (PDUs)
Eats PDU, 1U, 2 L620P, 2 C20 Input,
- Single-phase Monitored 1U Black
- LCD
- 9 AC outlet(s) C13 coupler, C19 coupler
- 3330 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

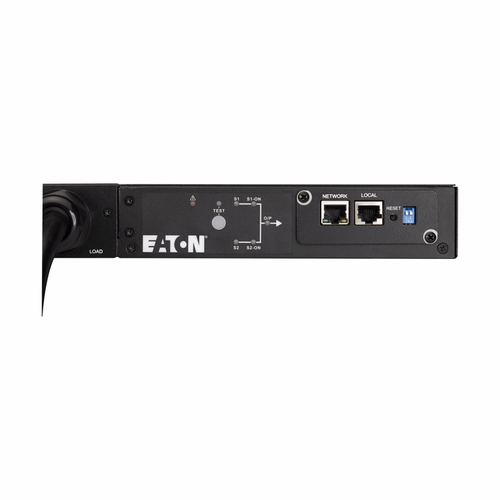

The Eaton®
eATS Monitored models enable you to seamlessly switch non-phase synchronized AC power
sources in the event of a power failure. Generally used to provide power redundancy to equipment with a single power supply, the eATS automatically transfers power between sources with no interruption.
The eATS can create a redundant environment ensuring your critical equipment remains operational at all times. Remotely monitor alerts, provide redundant power and keep mission critical applications running with this reliable and easy-to-use solution.
Specifications
Design
- PDU types
- Monitored
- Type
- Single-phase
- Rack capacity
- 1U
- Mounting
- Horizontal
- Housing material
- Metal
- Product colour
- Black

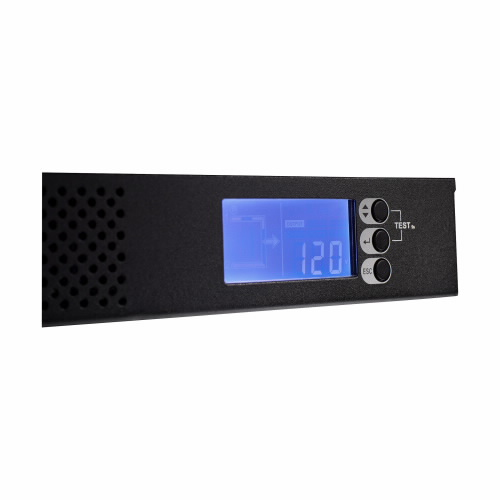

- Display
- LCD
Ports & interfaces

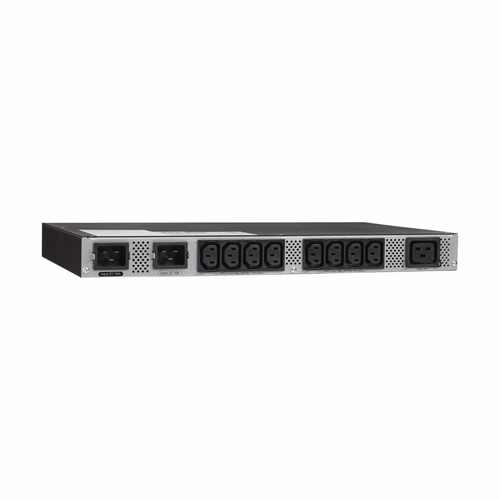

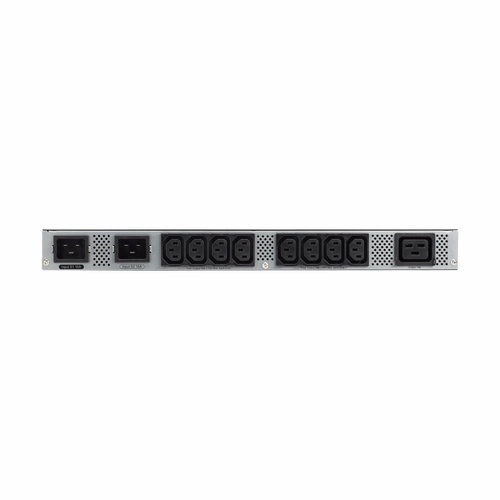

- AC outlets quantity
- 9 AC outlet(s)
- Power plug
- C13 coupler
- AC outlet types
- C13 coupler, C19 coupler
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Features
- Cable length
- 1.5 m
Power
- Nominal input voltage
- 100 - 240 V
- Maximum current
- 16 A
- Maximum power
- 3330 W
Certificates
- Certification
- UL
Weight & dimensions
- Width
- 127 mm
- Depth
- 558.8 mm
- Height
- 137.1 mm
- Weight
- 5.44 kg
Packaging data
- Package type
- Box
Downloads
