EatonPower Distribution Units (PDUs)
NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - 1440 W - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

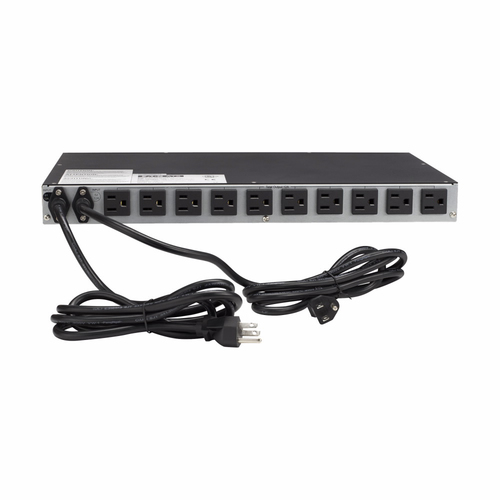

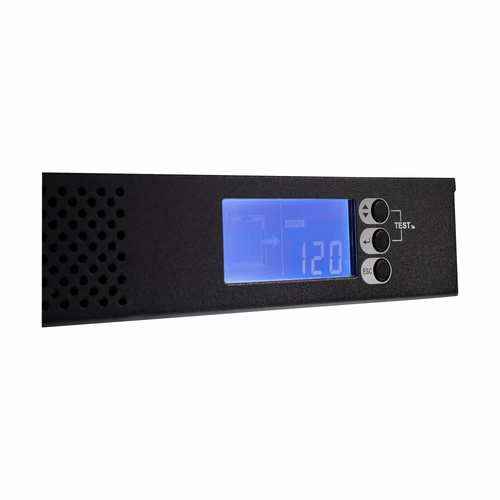

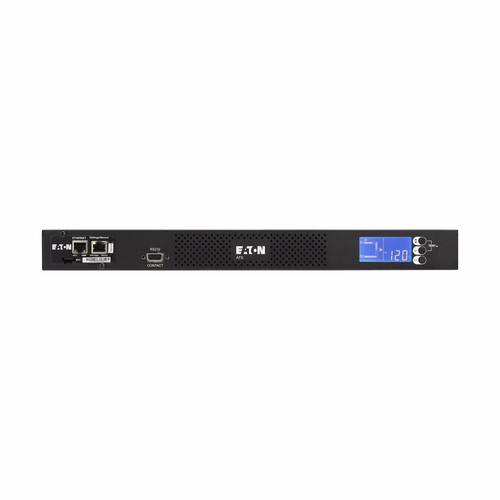

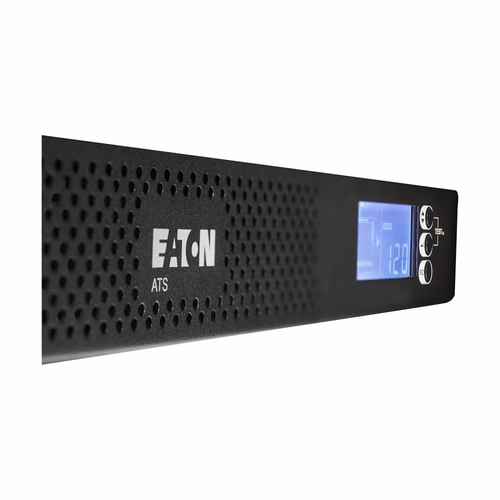

Eaton ATS rack PDU
The automatic transfer switch PDU monitors the power inputs of non-phase synchronized sources, providing a fast switch transfer from primary to secondary AC source power without interruption. These PDUs assure the highest level of redundancy to mission-critical applications.
Specifications
Design
- PDU types
- Monitored
- Type
- Single-phase
- Rack capacity
- 1U
- Mounting
- Horizontal
- Housing material
- Metal
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- Power plug
- NEMA 5–15P
- AC outlet types
- NEMA 5–15R
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Features
- LED indicators
- Yes
- Cable length
- 1.5 m
Power
- Nominal input voltage
- 120 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 12 A
Certificates
- Certification
- UL
Weight & dimensions
- Width
- 558.8 mm
- Depth
- 381 mm
- Height
- 137.1 mm
- Weight
- 5.4 kg
Packaging content
- Cables included
- AC
- Manual
- Yes
Packaging data
- Package type
- Box
