EatonUninterruptible Power Supplies (UPSs)

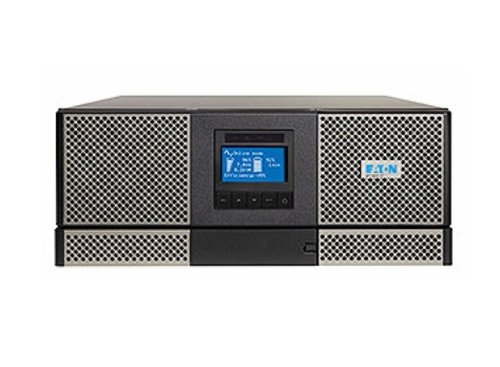

9PX 6K SP 120/208 UPS
- 5.5 kVA 4900 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust power management software makes managing your UPS easy — even in virtualized environments.
Specifications
Features
- Output power capacity
- 5.5 kVA
- Output power
- 4900 W
- Input operation voltage (min)
- 176 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 208 V
- Output voltage regulation
- 1%
- Efficiency
- 92.9%
- Input power factor
- 0.99
- Output power factor
- 0.9
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Surge protection
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5–20R, NEMA L14-30R, NEMA L6-30R, Terminal
- Power plug
- NEMA L14-30P
- AC outlets quantity
- 8 AC outlet(s)
- USB 2.0 ports quantity
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Hot-swap battery
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Cable length
- 1.8 m
- Product colour
- Black
- Display type
- LED
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Safety regulation & standards
- Safety
- CE / cULus / NOM
Weight & dimensions
- Width
- 440 mm
- Depth
- 650 mm
- Height
- 172.7 mm
- Weight
- 71.3 kg
Other features
- Nominal input voltage
- 120-208 V
Downloads
