ATENVideo Splitters

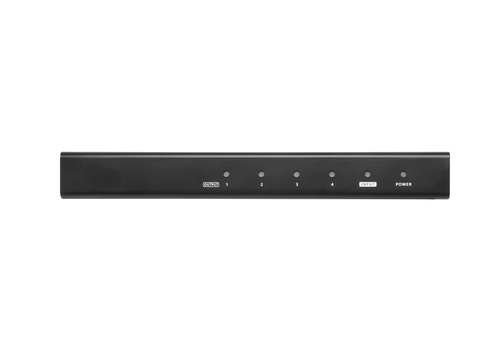

VS184B video splitter HDMI 4x HDMI
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Supports HDR10+
- Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K)*
- Max pixel clock rate up to 600 MHz
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Specifications

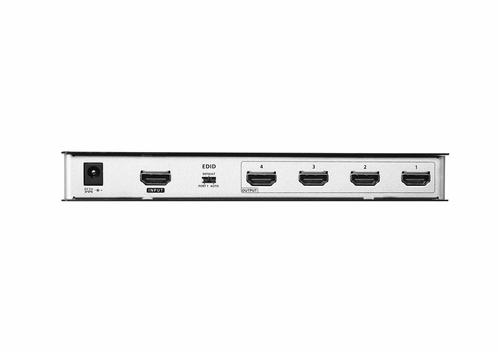

Ports & interfaces
- Video port type
- HDMI
- Video in
- 1
- Video out
- 4x HDMI
- Video ports quantity
- 4
- DC-in jack
- Yes
Features
- Product colour
- Black
- Housing material
- Metal
- Maximum resolution
- 1600 x 1200 pixels
- Maximum operating distance
- 20 m
- HDCP
- Yes
- Supported graphics resolutions
- 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Power LED
- Yes
- Plug and Play
- No
- Supported video modes
- 480p, 720p, 1080i, 1080p
- LED indicators
- Yes
Power
- Power consumption (typical)
- 4.6 W
Weight & dimensions
- Dimensions (WxDxH)
- 200 x 80 x 25 mm
- Weight
- 470 g
Packaging content
- Cables included
- HDMI
- User guide
- Yes
- AC adapter included
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Operating relative humidity (H-H)
- 0 - 80%
Logistics data
- Harmonized System (HS) code
- 85176990
