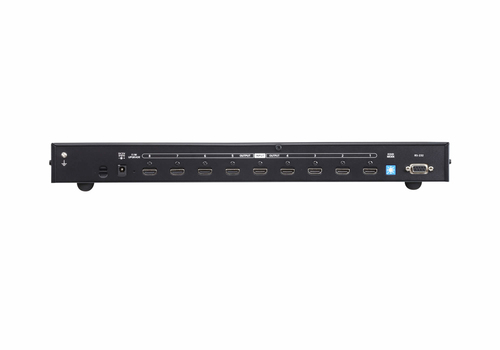

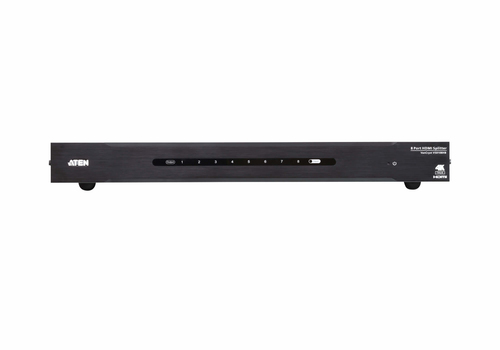

8Port True 4K HDMI Splitter
- Allows one HDMI source to be connected to up to 8 HDMI displays
- HDMI 2.0 (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
- Supports HDR10+
- Long distance transmission from source to output - up to 6 m
- Built-in bi-directional RS-232 serial control port for high-end system control
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theater, commercial settings, educational centers, meeting rooms, or wherever needed to meet application requirements.
Specifications
Ports & interfaces
- Video port type
- HDMI
- Video out
- 8x HDMI
- HDMI version
- 2.0
- Video ports quantity
- 9
- Connector(s)
- RS-232, HDMI
- DC-in jack
- Yes
Features
- Product colour
- Black
- Housing material
- Metal
- Maximum resolution
- 4096 x 2160 pixels
- 3D
- Yes
- Maximum operating distance
- 3 m
- Maximum refresh rate
- 60 Hz
- Bandwidth
- 600 MHz
- Rack mounting
- Yes
- HDCP
- Yes
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Plug and Play
- Yes
- LED indicators
- Yes
- Dolby technologies
- DTS-HD Master Audio, Dolby TrueHD
- Certification
- RoHS
Power
- Output voltage
- 5 V
- Power consumption (typical)
- 11.95 W
Weight & dimensions
- Dimensions (WxDxH)
- 437.2 x 157.8 x 44 mm
- Weight
- 2.18 kg
Packaging content
- Cables included
- AC
- User guide
- Yes
- AC adapter included
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Logistics data
- Harmonized System (HS) code
- 85176990
