ATENPower Distribution Units (PDUs)
10 Outlets 15A Basic PDU w/ Surge Protection 100240V
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Surge Protection
- Over-current Protection
- Aluminum material
- Works with data centers, server rooms and telecom equipment
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

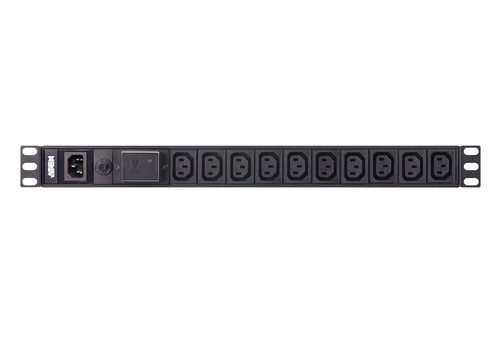

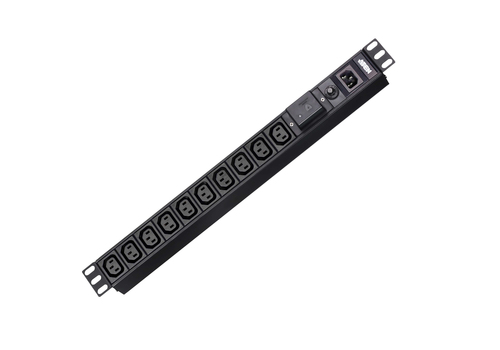

The Aten’s PE0110S, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC and NEMA output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0110S also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 1U
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- Power plug
- IEC 320
- AC outlet types
- C13 coupler
Power
- Nominal input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 10 A
- Load capacity
- 2400 VA
Certificates
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 444 mm
- Depth
- 4820 mm
- Height
- 450 mm
- Weight
- 660 g
Downloads
