APCUninterruptible Power Supplies (UPSs)

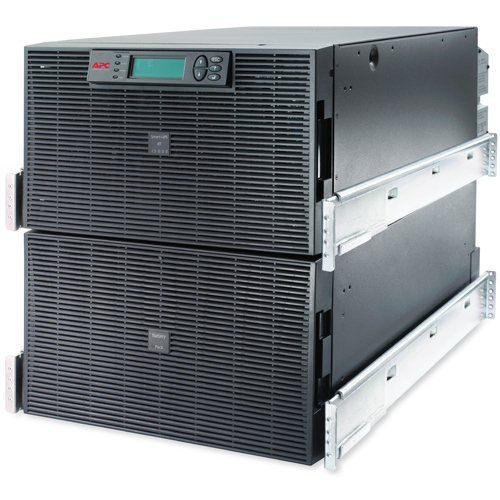

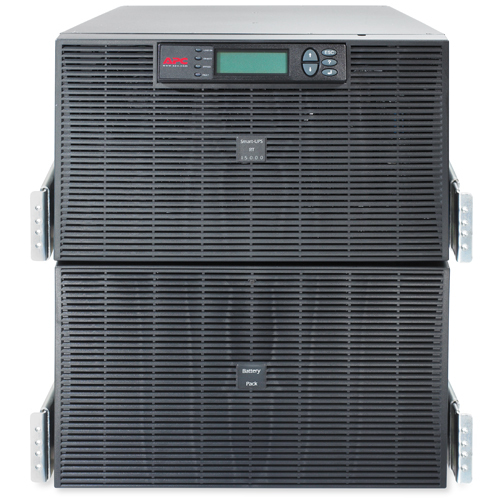

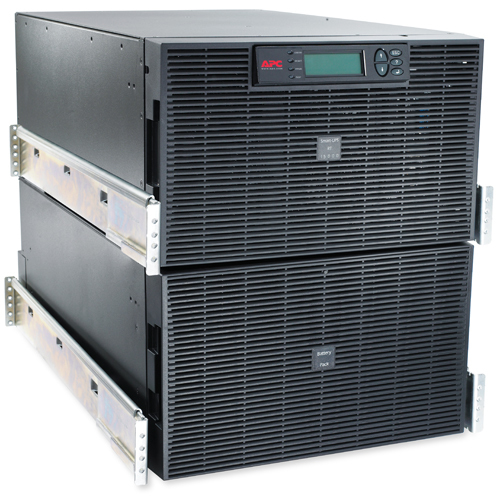

Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
- Double-conversion (Online)
- 15 kVA 12000 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
High density, double-conversion on-line power protection with scalable runtime.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 15 kVA
- Output power
- 12000 W
- Waveform
- Sine
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Maximum current
- 90 A
- Number of output phases
- 1
- Efficiency
- 95%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Noise level
- 50 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes

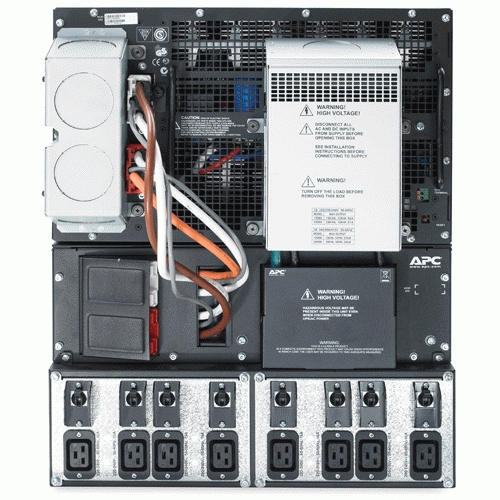

Ports & interfaces
- AC outlet types
- C19 coupler
- Power plug
- Terminal
- AC outlets quantity
- 8 AC outlet(s)
- Number of output IEC jumpers
- 2
- Serial interface
- Yes
- Serial interface type
- RS-232
- Cabling technology
- 10/100Base-T
- SmartSlot
- Yes
- SmartConnect port
- No

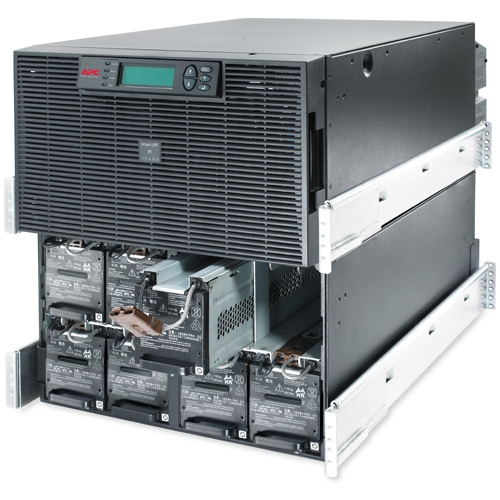

Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 3840 VAh

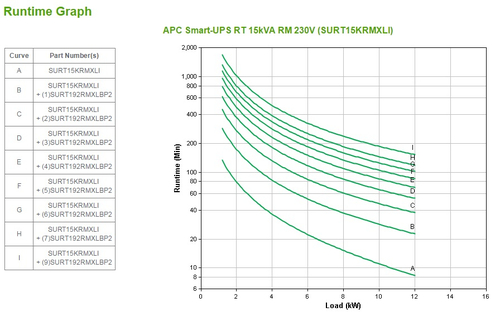

- Typical backup time at full load
- 8.3 min
- Typical backup time at half load
- 22.3 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 2.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 12U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232
- Management card included
- Yes
- Manual
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 773 mm
- Height
- 533 mm
- Weight
- 247.7 kg
Packaging data
- Software CD
- Yes
- Package width
- 610 mm
- Package depth
- 1003 mm
- Package height
- 990 mm
- Package weight
- 314.1 kg
Logistics data
- Products per pallet
- 1 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 29383.71
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
