APCMaintenance Bypass Panels (MBPs)
Service Bypass Unit for SRYL, 200/208/230/240V, 125A, MBB, Hardwire Input/Output
- Compatible with all Smart-UPS Modular Ultra UPS’s
- Utility power bypasses the UPS so you can perform maintenance on the UPS without downtime
- Lock Out Tag Out (LOTO) –prevents unintended bypass condition
- Standard warranty 5 years repair or replace
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

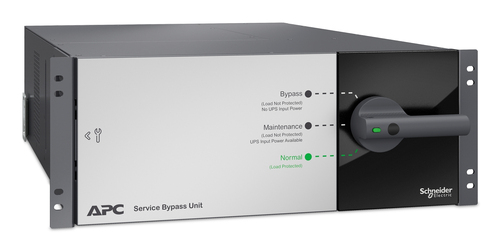

APC Smart-UPS Modular Ultra Service Bypass Unit.
Specifications
Features
- Housing colour
- Black
- Rack capacity
- 4U
- Rack mounting
- Yes
Power
- Operation voltage range
- 200 - 240 V
- Maximum current
- 125 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Maximum operating altitude
- 3000 m
Weight & dimensions
- Width
- 432 mm
- Depth
- 755 mm
- Height
- 175 mm
- Weight
- 23 kg
Downloads
