APCUninterruptible Power Supplies (UPSs)

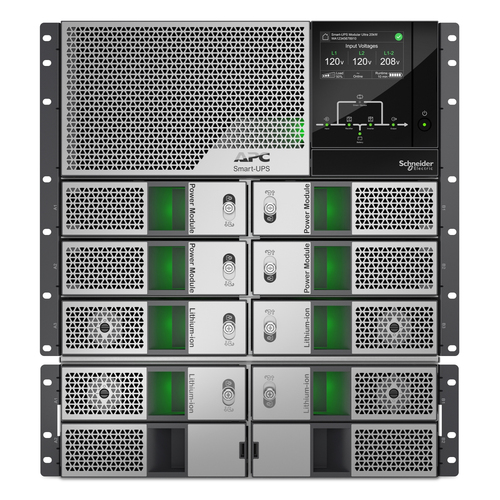

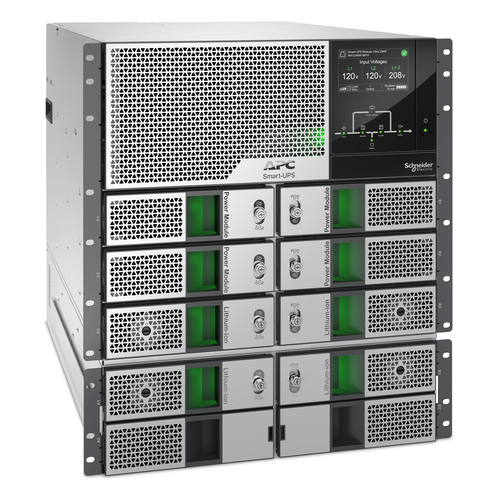

FDONLY ITEM DUE TO LITHIUM APC SmartUPS Modular Ultra 20kW Scalable to 20kW N+1 Redundant
- 9U Rackmount UPS Chassis, 3U XBP Frame, scalable to 20kW N+1 with 4 (5kW) Power and 4 Battery Module
- 125A chassis allows you to scale power protection up to 20kW N+1
- At 50% smaller & 60% lighter, fewer people are required to install
- The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
- 1-Year Secure Network Management Card subscription included
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 125A supports up to 20kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 20 kVA
- Output power
- 20000 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Power factor
- 0.5
- Emergency Power Off (EPO)
- Yes
- Noise level
- 68 dB
Ports & interfaces
- USB port
- Yes
- Serial interface
- Yes
- Network card slot
- Yes
- SmartSlot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Number of batteries included
- 4 pc(s)
- Battery life (max)
- 10 year(s)
Design
- Form factor
- Rackmount
- Rack capacity
- 12U
- Product colour
- Black, Silver
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- CE, cULus
Packaging content
- Batteries included
- Yes
- Rack mount kit
- Yes
- Management card included
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 440 mm
- Depth
- 740 mm
- Height
- 520 mm
- Weight
- 148.5 kg
Packaging data
- Package width
- 600 mm
- Package depth
- 580 mm
- Package height
- 982 mm
- Package weight
- 167 kg
Downloads
