APCUninterruptible Power Supplies (UPSs)
Smart-UPS Ultra On Line SRTL 5kVA RM Isolation/Step-Down Transformer
- Double-conversion (Online)
- 5 kVA 5000 W
- Waveform: Sine
- 12 AC outlet(s)
- Lithium-Ion (Li-Ion)
- Rackmount Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

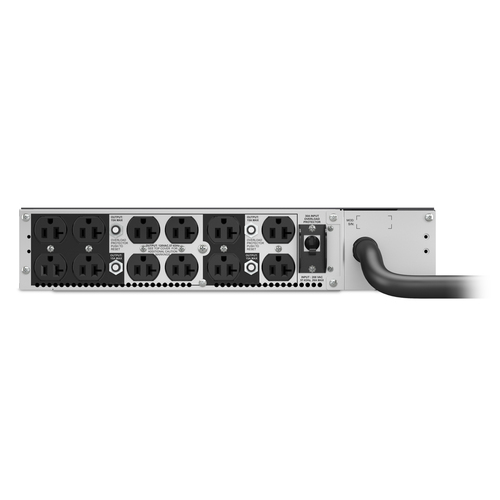

The Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. Rackmount or tower installation, install the step-down transformer above the compatible STLR 5kW UPS. 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker Standard warranty, 5 years repair or replace.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 5000 W
- Waveform
- Sine
- Input operation voltage (max)
- 208 V
- Input frequency
- 50/60 Hz
- Output operation voltage (max)
- 120 V
Ports & interfaces
- AC outlet types
- NEMA 5–20R
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 12 AC outlet(s)
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Certification
- CSA
Packaging content
- Rack mount kit
- Yes
Power
- Input current (max)
- 30 A
Weight & dimensions
- Width
- 592 mm
- Depth
- 780 mm
- Height
- 212 mm
- Weight
- 46 kg
Packaging data
- Package width
- 952 mm
- Package depth
- 622 mm
- Package height
- 254 mm
- Package weight
- 49.9 kg
Downloads
