APCUninterruptible Power Supplies (UPSs)
FDONLY ITEM DUE TO LITHIUM APC SmartUPS SRTL 5KVA Tower 208V to 120V 2U StepDown Transformer Tower
- Double-conversion (Online)
- 4.9 kVA 4900 W
- Waveform: Sine
- 16 AC outlet(s)
- Lithium-Ion (Li-Ion) 180 V
- Rackmount Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Description

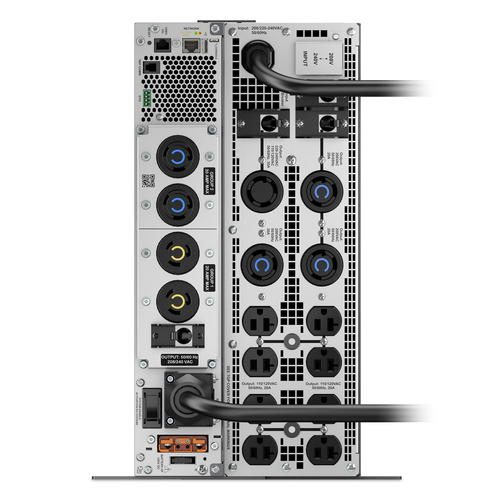

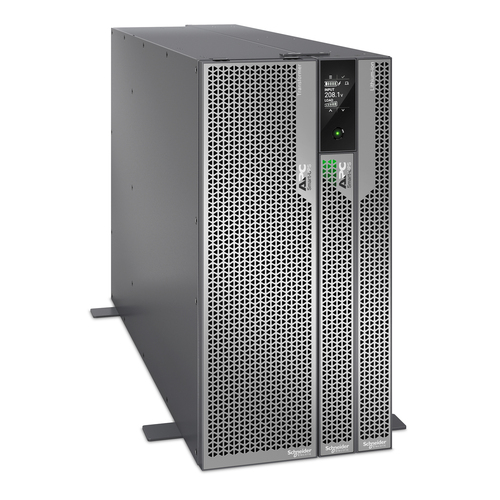

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Standard warranty, 5 years repair or replace.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 4.9 kVA
- Output power
- 4900 W
- Waveform
- Sine
- Input operation voltage (min)
- 208 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 1260 J
- Heat dissipation
- 1047 BTU/h
- Crest factor
- 3:1
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- NEMA L14-30R, NEMA L5-20R, NEMA L6-20R, NEMA L6-30R
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 16 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery voltage
- 180 V
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 1.5 h
Design
- Form factor
- Rackmount
- Rack capacity
- 3U
- Cable length
- 3.05 m
- Product colour
- Silver
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 220 mm
- Depth
- 719 mm
- Height
- 435 mm
- Weight
- 85.9 kg
Packaging data
- Package width
- 980 mm
- Package depth
- 610 mm
- Package height
- 278 mm
- Package weight
- 92.7 kg
