APCUninterruptible Power Supplies (UPSs)

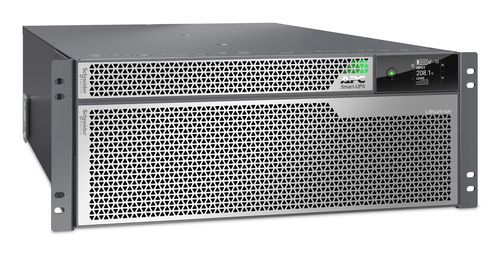

Smart-UPS Ultra On-Line Li-Ion SRTL10KRM4UI, 10KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC
- 4U, 10000VA/10000W rack/ tower convertible UPS with autorotating LCD display
- Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
- 1-Year Secure Network Management Card subscription included
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 10 kVA
- Output power
- 10000 W
- Waveform
- Sine
- Input operation voltage (min)
- 208 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 1410 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
Ports & interfaces

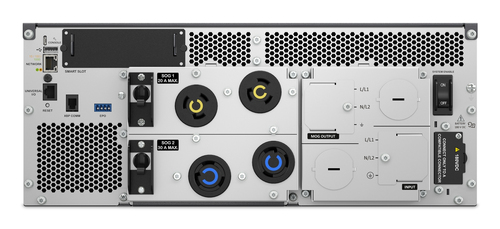

- AC outlet types
- NEMA L6-20R, NEMA L6-30R
- Power plug
- Hardwire
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Network card slot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery voltage
- 180 V
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 1.5 h
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 4U
- Product colour
- Grey
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 10000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Compliance certificates
- CE, REACH, UKCA, VDE
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable
- Management card included
- Yes
- Manual
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 832 mm
- Height
- 175 mm
- Weight
- 55 kg
Packaging data
- Package width
- 650 mm
- Package depth
- 1000 mm
- Package height
- 630 mm
- Package weight
- 88.5 kg
