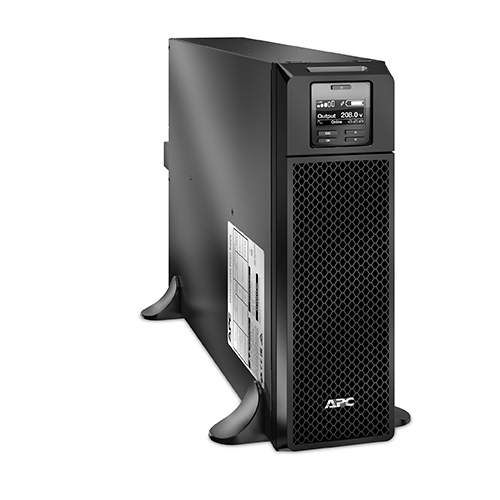

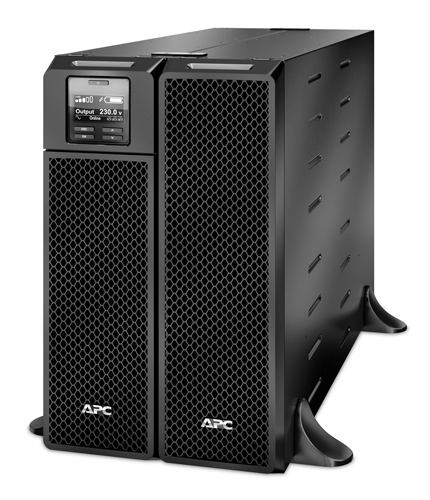

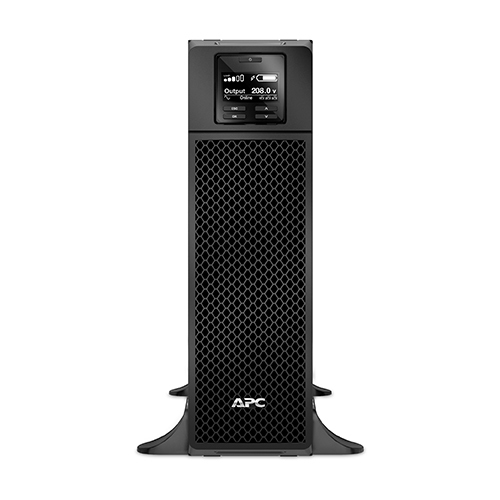

Smart-Ups SRT 5000VA 208V IEC
- Double-conversion (Online)
- 5 kVA 4250 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Marketing Features
- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 4250 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 480 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Auto-restart
- Yes
Ports & interfaces

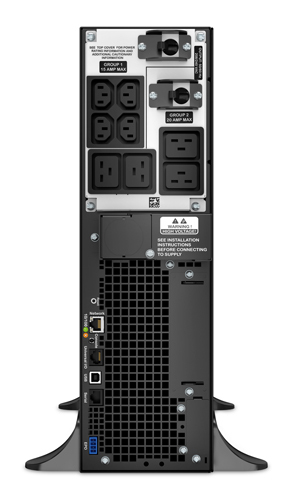

- AC outlet types
- IEC Jumpers, C13 coupler, C19 coupler
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 10 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- Cabling technology
- 10/100Base-T
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 840 VAh
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 1.5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- APCRBC140
Design
- Form factor
- Rackmount/Tower
- Cable length
- 3 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Alarm, Status
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH
Packaging content
- Cables included
- USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 130 mm
- Depth
- 719 mm
- Height
- 432 mm
- Weight
- 55.8 kg
Packaging data
- Temperature sensor
- Yes
- Resource CD
- Yes
- Warranty card
- Yes
- Software CD
- Yes
- Package width
- 610 mm
- Package depth
- 960 mm
- Package height
- 330 mm
- Package weight
- 64.4 kg
Logistics data
- Products per pallet
- 6 pc(s)
