APCUninterruptible Power Supplies (UPSs)

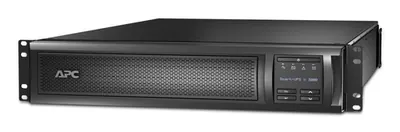

Large Lithium* APC Smart-UPS, Lithium-Ion, 3000VA, 120V with SmartConnect Port
- Line-Interactive
- 3 kVA 2700 W
- Waveform: Sine
- 8 AC outlet(s)
- Lithium-Ion (Li-Ion)
- Rackmount Black, Silver
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 82 V
- Input operation voltage (max)
- 144 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Surge energy rating
- 459 J
- Efficiency
- 96%
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
Ports & interfaces
- AC outlet types
- NEMA 5–15R, NEMA 5–20R
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- SmartSlot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 8 min
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black, Silver
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 7620 m
Certificates
- Certification
- CSA C22.2 No 107.1, CULus, FCC part 15 class A, UL 1778, UL 1973
Weight & dimensions
- Width
- 432.1 mm
- Depth
- 683 mm
- Height
- 86.1 mm
- Weight
- 34.2 kg
Packaging data
- Package width
- 600 mm
- Package depth
- 980.4 mm
- Package height
- 254 mm
- Package weight
- 42.7 kg
