Smart-UPS X uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 11 AC outlet(s)
- Line-Interactive
- 3 kVA 2700 W
- Waveform: Sine
- 11 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

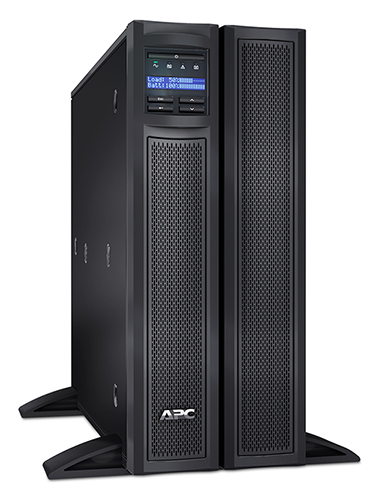

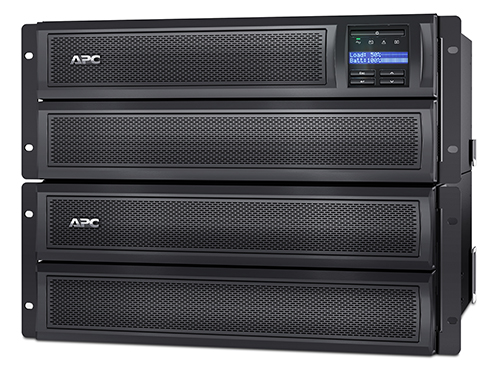

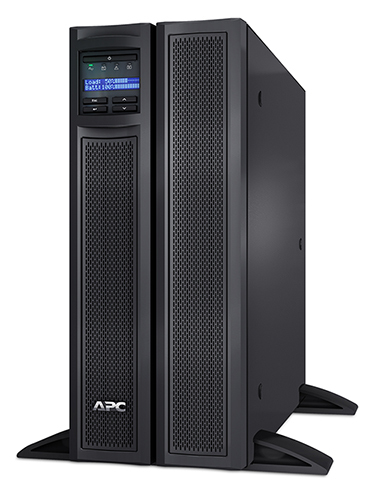

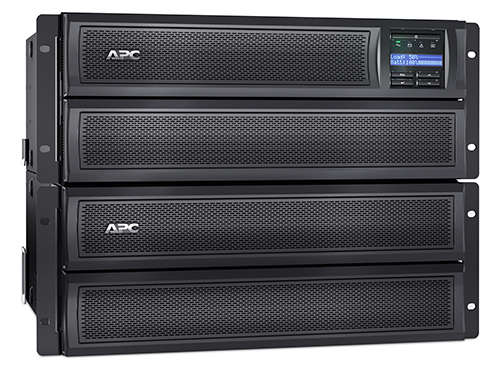

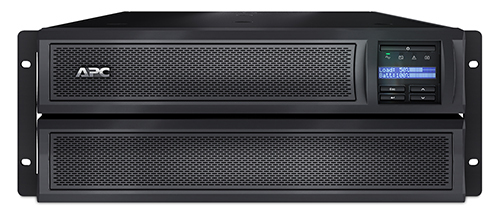

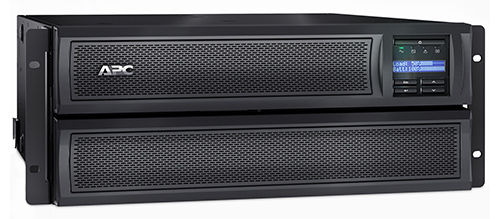

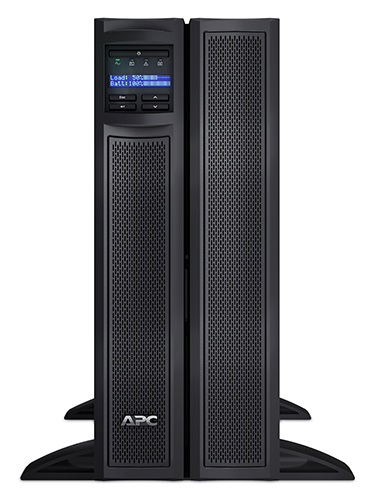

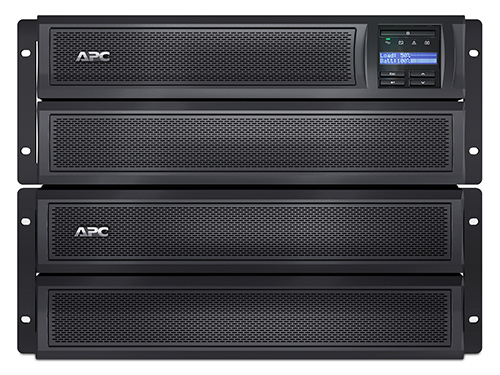

APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes : CD with software , Documentation CD , Rack Mounting Brackets , Smart UPS signalling RS-232 cable , USB cable , User Manual
Availability
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Manageability
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- LED status indicators
Quickly understand unit and power status with visual indicators.
- Serial connectivity
Provides management of the UPS via a serial port.
- Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Network manageable
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 141 V
- Input operation voltage (max)
- 280 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Surge energy rating
- 645 J
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
- Auto-restart
- Yes
Ports & interfaces

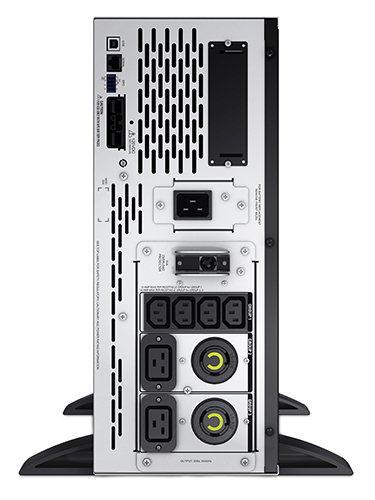

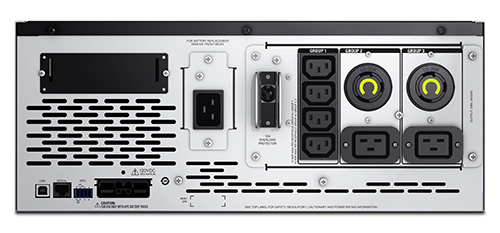

- AC outlet types
- C13 coupler, C19 coupler, NEMA L6-20R, IEC Jumpers
- Power plug
- NEMA L6-20P
- AC outlets quantity
- 11 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 738 VAh
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 4U
- Product colour
- Black
- Display type
- LED
- LED indicators
- Status
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Manual
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 178 mm
- Depth
- 483 mm
- Height
- 432 mm
- Weight
- 38.6 kg
Packaging data
- Resource CD
- Yes
- Software CD
- Yes
- Package width
- 586 mm
- Package depth
- 633 mm
- Package height
- 330 mm
- Package weight
- 47.7 kg
Logistics data
- Products per pallet
- 6 pc(s)
