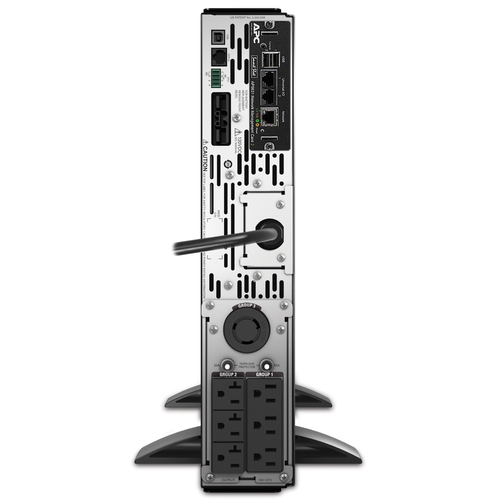

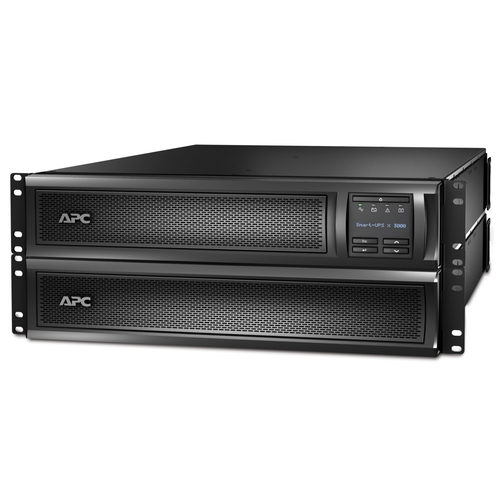

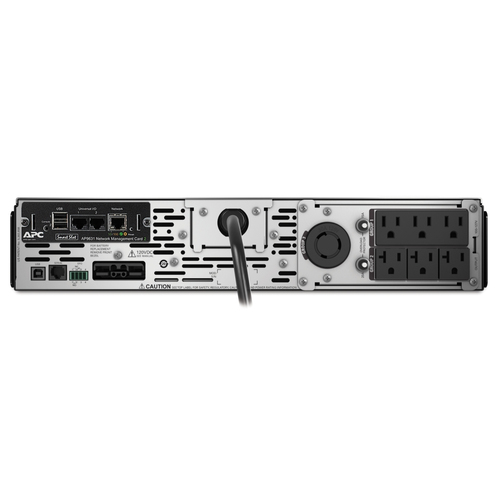

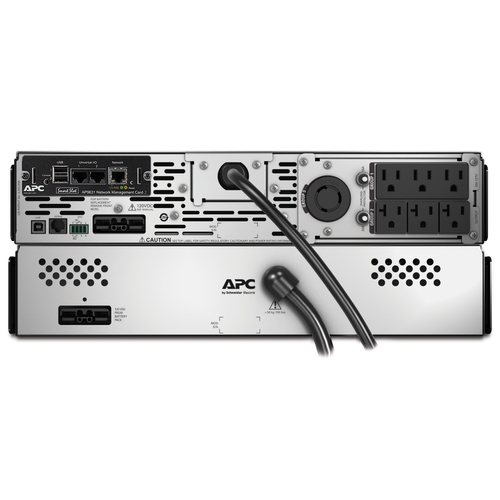

APCUninterruptible Power Supplies (UPSs)
Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x
- Line-Interactive
- 2.88 kVA 2700 W
- Waveform: Sine
- 5 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-30R NEMA,NMC, Extended runtime,10ft input cord
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.88 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 70 V
- Input operation voltage (max)
- 153 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 127 V
- Output frequency
- 50/60 Hz
- Maximum current
- 15 A
- Surge energy rating
- 540 J
- Response time
- 4 ms
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm
- Detachable power cord
- No
Ports & interfaces
- AC outlet types
- NEMA 5-15R, NEMA 5–20R, NEMA L5-30R
- Power plug
- NEMA L5-30P
- AC outlets quantity
- 5 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 3
- USB port type
- USB Type-A/USB Type-B
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Cable length
- 3.05 m
- Product colour
- Black
- Control type
- Buttons
- Display type
- LED
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Compliance certificates
- RoHS, WEEE
- Certification
- RoHS, WEEE, BSMI, CSA, NOM, TÜV, VCCI Class A
Packaging content
- Manual
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 667 mm
- Height
- 85 mm
- Weight
- 38.4 kg
Packaging data
- Package width
- 869 mm
- Package depth
- 596 mm
- Package height
- 243 mm
- Package weight
- 45.3 kg
Logistics data
- Warranty period
- 3 year(s)
