Drag to turn · 10 views

APCUninterruptible Power Supplies (UPSs)

Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card

Part # SMX3000RMHV2UNCUPC 731304272694Warranty: 3 years repair or replace (excluding battery) and 2 years for battery99.8 lb

Line-Interactive
3 kVA 2700 W
Waveform: Sine
9 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Stay always online and prevent data loss

As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime

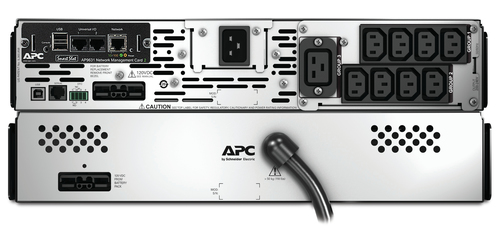

You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.

Safety

In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Manage your Smart-UPS

Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown

PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.

*For HCI and virtual machine support an additional license is required:

1 year: SWPCNS1Y-DIGI

Up to (Replace bold number in article number with desired variant)

6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network

The network card can be managed externally via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract

The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:

• New and improved functions

• Security updates

• Advanced support

(The functionality of the support contract is included free of charge in the first year of the UPS)

*The above license and available in the variants:

1 year: SWNMC3SU-1Y-DIGI

Up to (Replace the bold number in the article number with the desired variant)

6 years: SWNMC3SU-6Y-DIGI

Ease of use

The basic functionalities can be set and read using physical buttons and an LCD screen.

Rack/tower convertible

The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency regulation: 50/60 Hz
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 645 J
Hold time (min): 2 ms
Hold time (max): 10 ms
Efficiency: 98.5%
Emergency Power Off (EPO): Yes
Noise level: 55 dB
Surge protection: Yes
Audible alarm(s): Yes
Auto-restart: Yes

Ports & interfaces

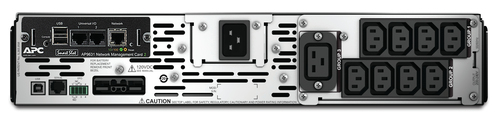

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Number of output IEC jumpers: 2
SmartSlot: Yes
SmartConnect port: No

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 738 VAh

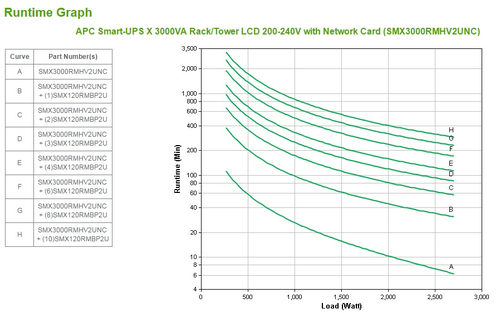

Typical backup time at full load: 6.25 min
Typical backup time at half load: 18 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 2U
Cable length: 2.44 m
Product colour: Black
LED indicators: Battery replacement

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
