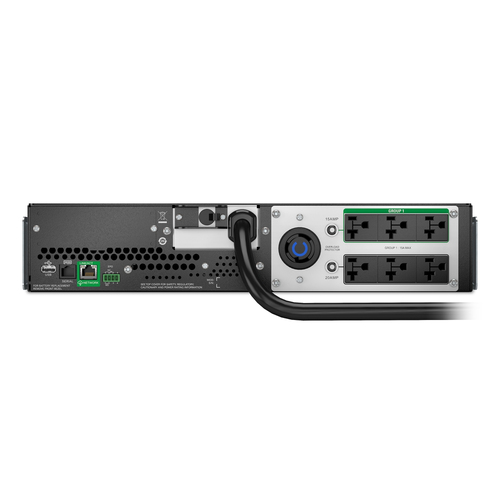

Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets
- 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 110 V
- Input operation voltage (max)
- 125 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 110 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 459 J
- Response time
- 6 ms
- Heat dissipation
- 348 BTU/h
- Number of input phases
- 1
- Number of output phases
- 1
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
Ports & interfaces
- AC outlet types
- NEMA 5-20R, NEMA L5-30R
- Power plug
- NEMA L5-30P
- AC outlets quantity
- 7 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- SmartSlot
- Yes
- SmartConnect port
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Number of batteries included
- 1 pc(s)
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 2 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- APCRBC174-LI
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.4384 m
- Product colour
- Black
- Display type
- LCD
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 7620 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Packaging content
- Batteries included
- Yes
- Rack mount kit
- Yes
- Cables included
- USB cable
Weight & dimensions
- Width
- 432 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 34.2 kg
Packaging data
- Package width
- 980 mm
- Package depth
- 620 mm
- Package height
- 254 mm
- Package weight
- 42.7 kg
