APCUninterruptible Power Supplies (UPSs)

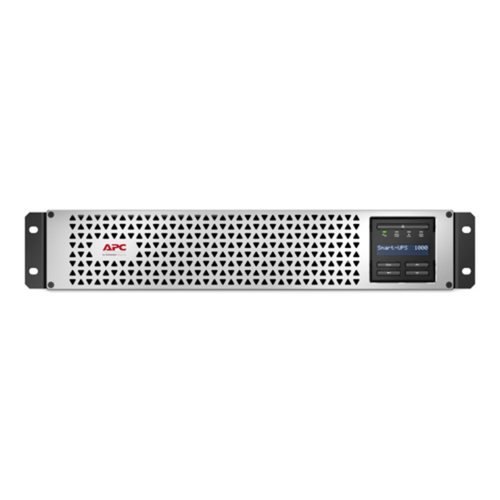

Large Lithium* APC Smart-UPS Li-Ion, Short Depth 1000VA, 120V with SmartConnect
- Line-Interactive
- 1 kVA 800 W
- Waveform: Sine
- 6 AC outlet(s)
- Lithium-Ion (Li-Ion)
- Rackmount Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1 kVA
- Output power
- 800 W
- Waveform
- Sine
- Input operation voltage (min)
- 75 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Surge energy rating
- 680 J
- Response time
- 6 ms
- Noise level
- 41 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm

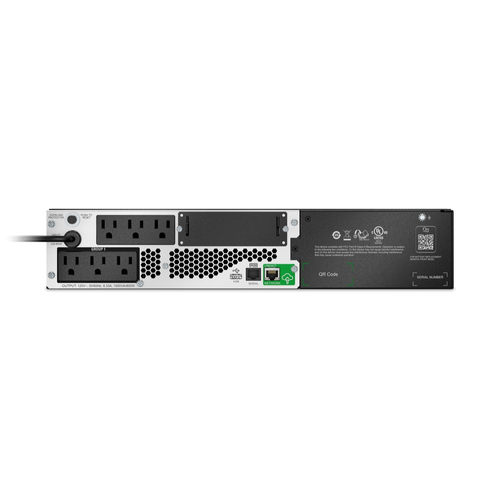

Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- USB port type
- USB Type-A
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- SmartSlot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery life (max)
- 10 year(s)
- Battery recharge time
- 3 h
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 35 °C
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 7500 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Weight & dimensions
- Width
- 438 mm
- Depth
- 318 mm
- Height
- 86 mm
- Weight
- 16.3 kg
Packaging data
- Package width
- 584 mm
- Package depth
- 472 mm
- Package height
- 229 mm
- Package weight
- 18.6 kg
Logistics data
- Products per pallet
- 16 pc(s)
Downloads
