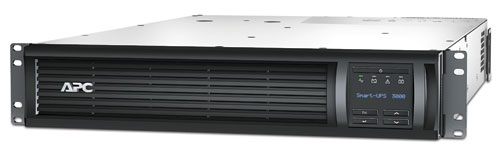

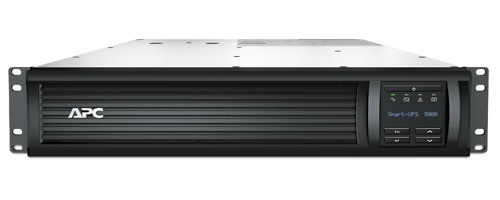

Smart-UPS uninterruptible power supply (UPS) Line-Interactive 9 AC outlet(s)

Part # SMT3000RMI2UUPC 731304284642114 lb

Line-Interactive
Waveform: Sine
9 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Outlet group control

Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

Audible alarms

Provide notification of changing flywheel conditions

InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Wide input voltage range

Designed for harsh electrical environments to save battery life.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

High online efficiency

Reduces utlility costs, generates less heat.

LED Indicators

Provide easy-to-read status of your utility power conditions, UPS and battery.

Cold-start capable

Provides temporary battery power when the utility power is out.

Specifications

Features

UPS topology: Line-Interactive
Waveform: Sine
Input operation voltage (min): 151 V
Input operation voltage (max): 302 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 320 J
Hold time (min): 4 ms
Hold time (max): 8 ms
Efficiency: 99%
Noise level: 55 dB
Audible alarm(s): Yes
Auto-restart: Yes

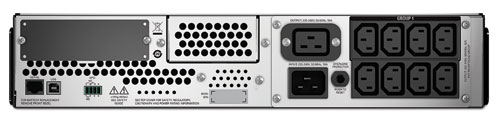

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
Number of output IEC jumpers: 3
USB port: Yes

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 547 VAh
Typical backup time at full load: 3.2 min
Typical backup time at half load: 11.5 min
Battery life (max): 5 year(s)
Battery recharge time: 3 h
Hot-swap battery: Yes
Automatic battery test: Yes
Cold start: Yes

Design

Form factor: Rackmount
Rack capacity: 2U
Cable length: 2 m
Product colour: Black
LED indicators: Status

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Certificates

Compliance certificates: RoHS
Certification: CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
