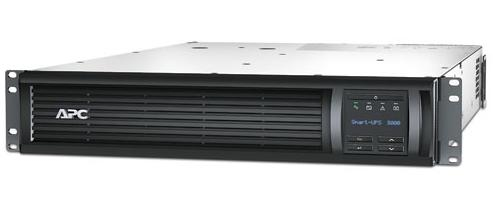

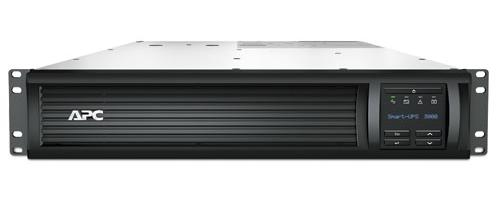

Smart UPS 3000VA uninterruptible power supply (UPS) Line-Interactive 2.88 kVA 2700 W 8 AC outlet(s)
- Line-Interactive
- 2.88 kVA 2700 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Smart UPS 3000VA LCD RM 2U 120V with 12FT CORD
Reliable network power protection designed for deployment in retail and open access environments.
Includes : CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost and Trim Automatic Voltage Regulation (AVR)
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- LED Indicators
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.88 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 75 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 459 J
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
- Auto-restart
- Yes
Ports & interfaces

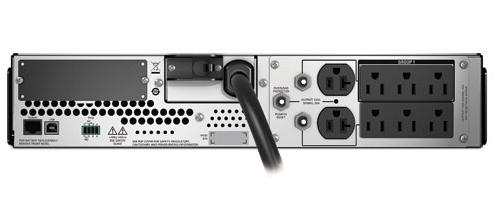

- AC outlet types
- NEMA 5–15R, NEMA 5–20R
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- RS-232 ports
- 1
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 566 VAh
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Cable length
- 3.66 m
- Product colour
- Black
- Display type
- LED
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- CSA, FCC Part 15 Class A, UL 1778, REACH, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 480 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 44.3 kg
Packaging data
- Resource CD
- Yes
- Software CD
- Yes
- Package width
- 600 mm
- Package depth
- 980 mm
- Package height
- 254 mm
- Package weight
- 51.7 kg
Logistics data
- Products per pallet
- 8 pc(s)
