Service Bypass Panel 200/208/230/240V 125A HW Input/Output

Part # SBP20KPUPC 731304266952Warranty: Core product: 24 month(s)69 lb

Supports up to 125A, suitable for high-demand applications
Compatible with various input and output voltages
Includes a bypass switch for seamless maintenance
Designed for rack installation, saving space in data centers

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

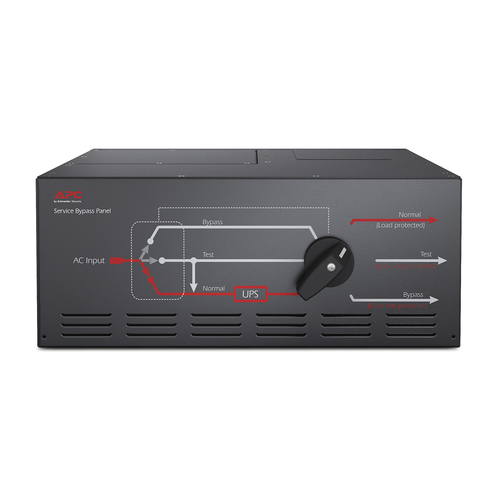

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.

Specifications

Features

Output power capacity: 20 kVA
Input operation voltage (min): 200 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Maximum current: 125 A

Ports & interfaces

AC outlet types: Hard Wire 5-wire (3PH + N + G)

Design

Form factor: Tower
Rack capacity: 4U
Product colour: Black

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 4500 m
Non-operating altitude: 0 - 15000 m

Technical details

Sustainable packaging: No
Preferred mounting position: lower
Take-back system: No
Packaging without single use plastic: No

Certificates

Compliance certificates: RoHS, REACH, WEEE
Certification: CSA; GOST

Weight & dimensions

Width: 432 mm
Depth: 554 mm
Height: 178 mm
Weight: 19.3 kg

Packaging data

Package weight: 31.4 kg

Logistics data

Customs product code (TARIC): 8536508000
Harmonized System (HS) code: 85078000
Country of origin: China

Other features

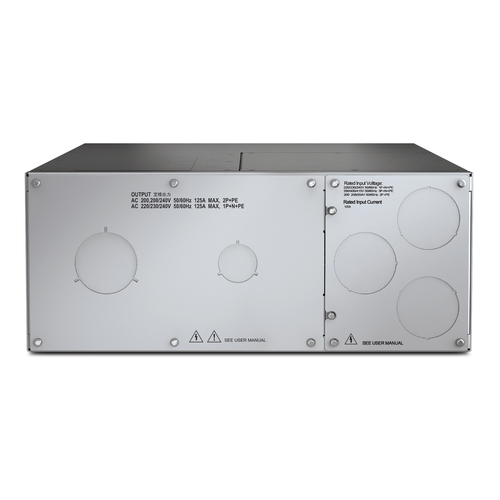

Output connections: hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s)
Operating temperature (T-T): -4 - 122 °F
Overload protection: Yes
Mounting: front
Package dimensions (WxDxH): 610 x 845 x 305 mm
