APCPower Distribution Units (PDUs)

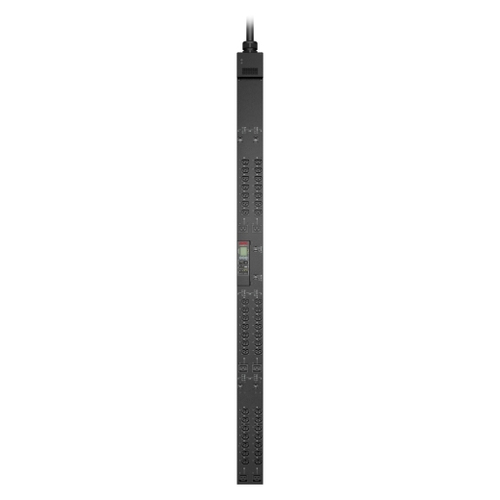

Rack PDU 9000 Switched, ZeroU, 17.2kW, 208V, (42) C13, (6) C19
- Flash Upgradeable
- Wireless Connectivity
- Wide range of input and output connections
- Rack-Mountable
- Single input power source
- Alarm Thresholds
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Specifications
Design
- PDU types
- Switched
- Type
- Single-phase
- Rack capacity
- 0U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces

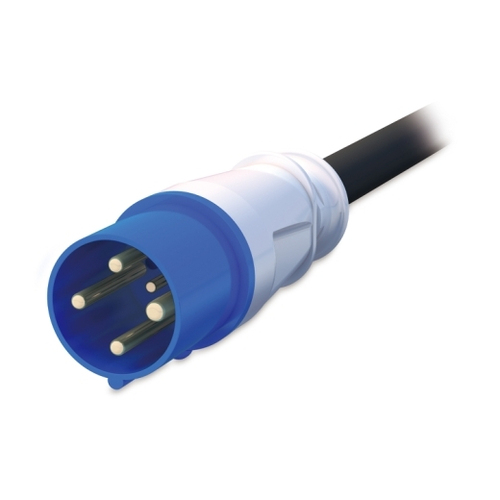

- Power plug
- IEC 60309
- AC outlet types
- C13 coupler, C15 coupler, C19 coupler, C21 coupler
Features
- Cable length
- 1.8 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 48 A
- Block 1 output current
- 60 A
- Block 2 output current
- 60 A
- Nominal output voltage
- 208 V
- Output voltage
- 208 V
- Load capacity
- 17300 VA
- Maximum input current per phase
- 60 A
- Maximum total current draw per phase
- 48 A
- Power protection features
- Overload
- Maximum power
- 17300 W
Operational conditions
- Operating temperature (T-T)
- -5 - 60 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15240 m
- Operating temperature (T-T)
- 23 - 140 °F
Weight & dimensions
- Width
- 111 mm
- Depth
- 76 mm
- Height
- 1833 mm
- Weight
- 14.5 kg
Packaging data
- Package weight
- 20 kg
- Package width
- 221 mm
- Package depth
- 112 mm
- Package height
- 2149 mm
