APCPower Distribution Units (PDUs)

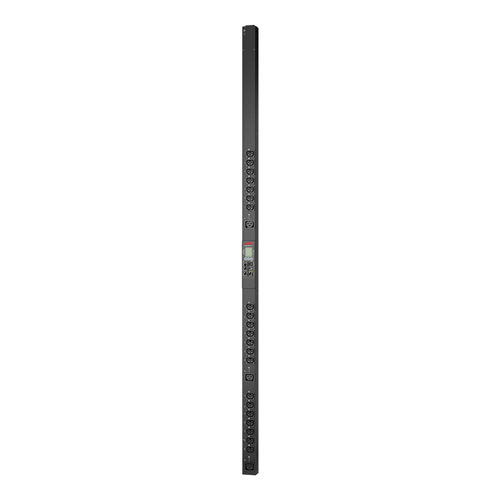

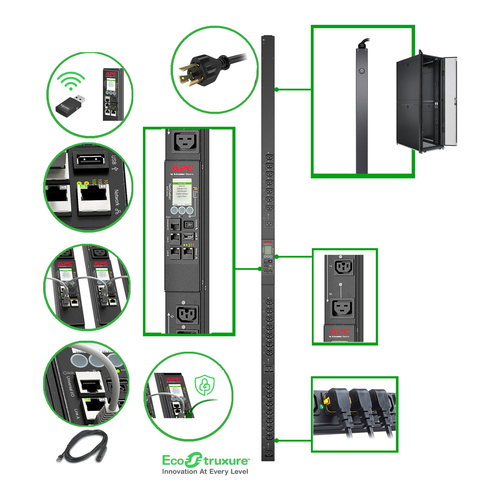

Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord
- 1-Year Secure Network Management Card subscription included
- It can handle a maximum power capacity of 11.5kW, suitable for demanding applications
- It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.
Specifications
Design
- PDU types
- Switched
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Power plug

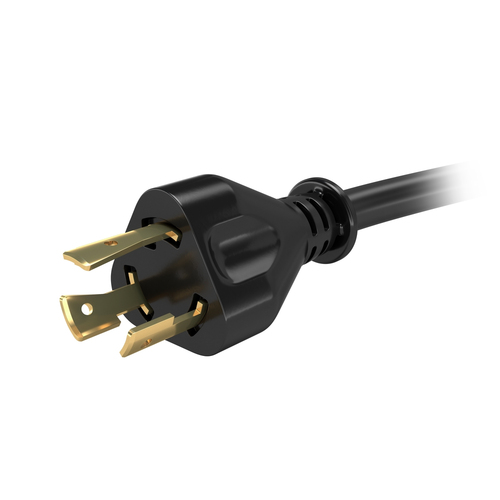

- NEMA L6-20P
- AC outlet types

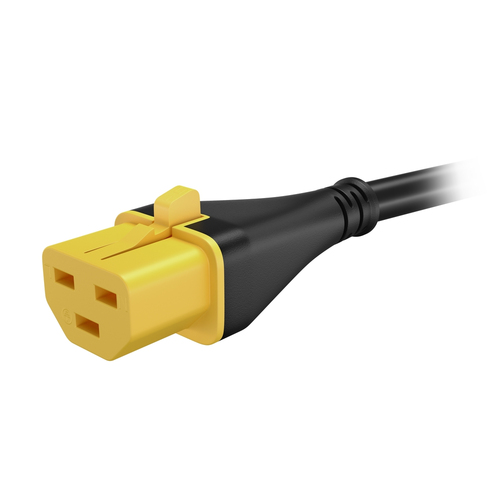

- C13 coupler, C15 coupler, C19 coupler, C21 coupler
- Input connection type
- IEC 60320 L6-20P
Power
- Nominal input voltage
- 200; 208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 20 A
- Nominal output voltage
- 200 - 208 V
- Output voltage
- 208 V; 200 V
- Load capacity
- 3300 VA
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- cUL listed; FCC part 15 class A; PSE
Operational conditions
- Operating temperature (T-T)
- -5 - 60 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15240 m
Weight & dimensions
- Width
- 55 mm
- Depth
- 46 mm
- Height
- 1797 mm
- Weight
- 5.61 kg
Packaging data
- Package weight
- 7.86 kg
- Package width
- 165 mm
- Package depth
- 114 mm
- Package height
- 2002 mm
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- 31346aed-552c-4a16-81d9-e683a383b6da
- Removable battery
- Yes
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Country of origin
- India
- Customs product code (TARIC)
- 8537109899
- Total carbon footprint (kg of CO2e)
- 1550.2280268984
- Warranty period
- 3 year(s)
