APCPower Distribution Units (PDUs)

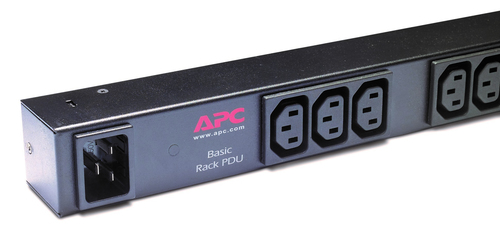

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13***For rders only*** Can remove cost adder at
- Basic 0U Black
- 15 AC outlet(s) C13 coupler
- 3680 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.
Specifications
Design
- PDU types
- Basic
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 15 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
- Input connection type
- IEC-320 C20
- Output connections
- (15) IEC 320 C13
Features
- Cable length
- 2.5 m
Power
- Nominal input voltage
- 23 V
- Output voltage
- 230 V
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 3680 W
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 44 mm
- Depth
- 44 mm
- Height
- 620 mm
- Weight
- 2 kg
