APCPower Distribution Units (PDUs)

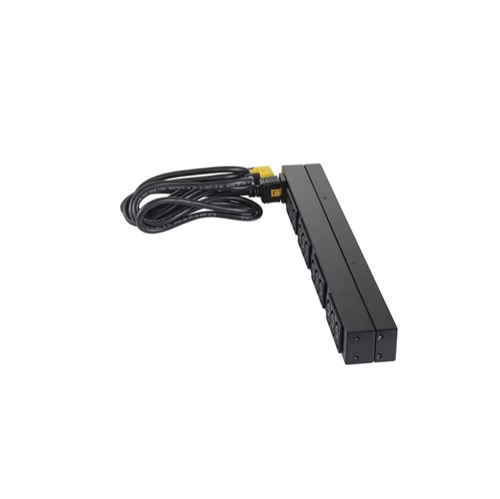

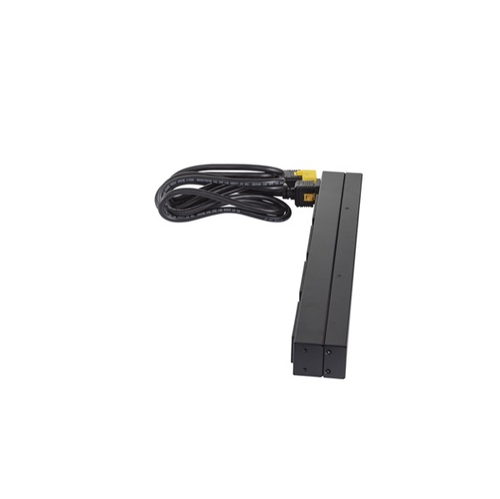

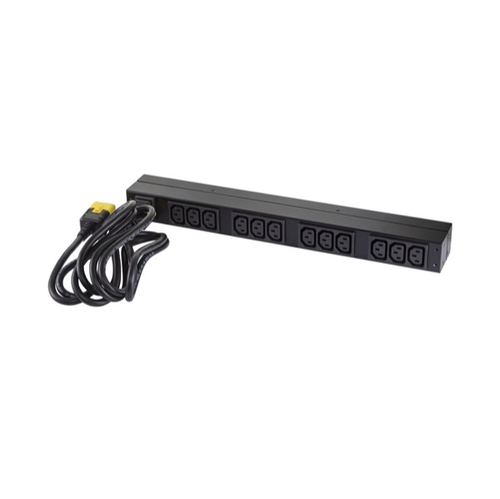

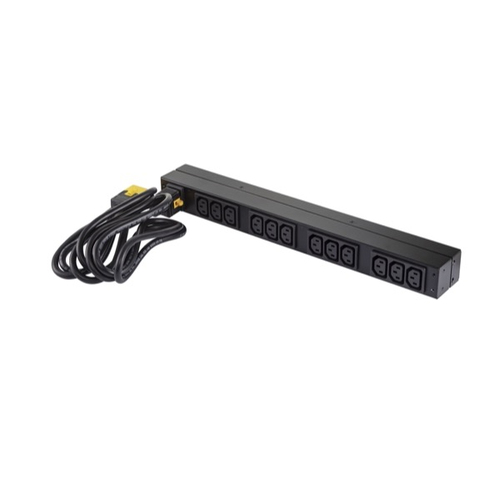

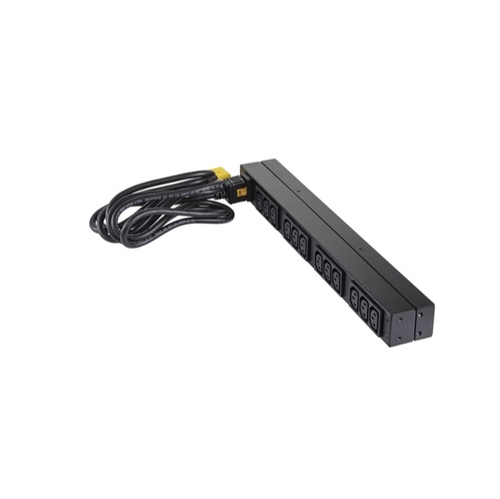

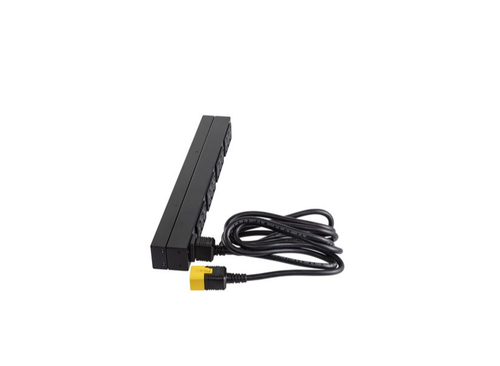

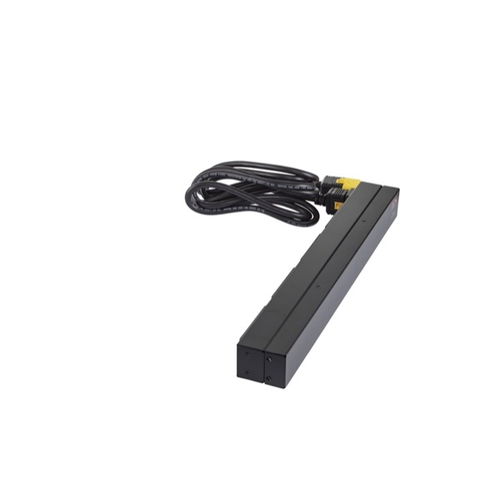

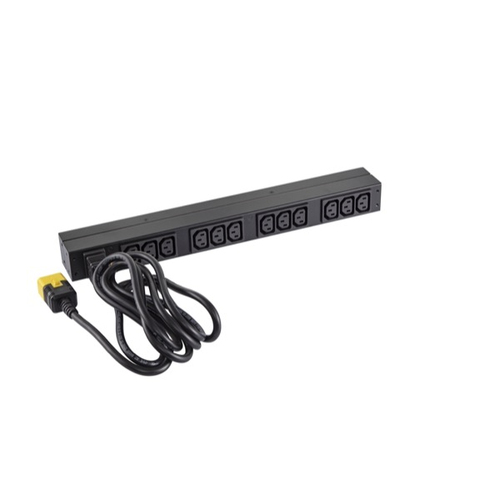

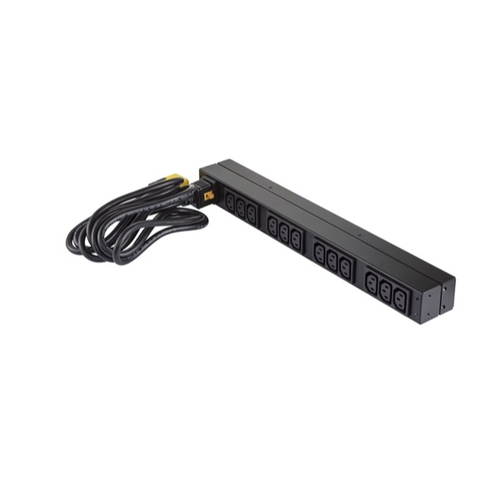

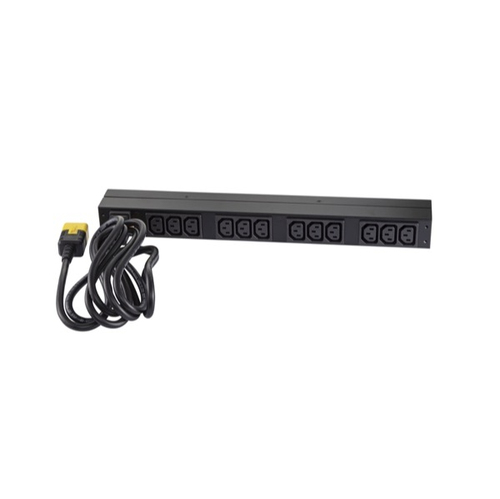

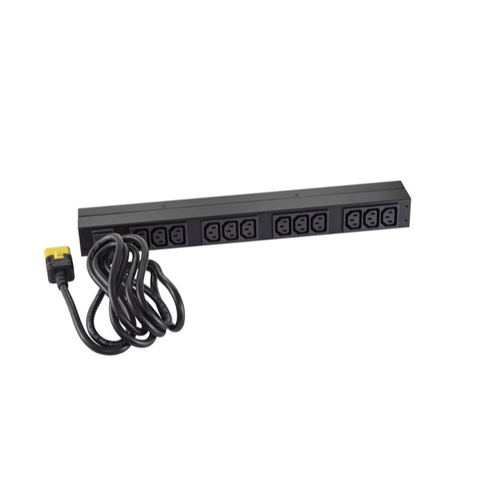

NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
- Single-phase Basic 0U/1U Black
- 12 AC outlet(s) C13 coupler
- 3680 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
Design
- PDU types
- Basic
- Type
- Single-phase
- Rack capacity
- 0U/1U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 12 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
- Input connection type
- IEC-320 C20
- Output connections
- (12) IEC 320 C13
Features
- Cable length
- 2.5 m
Power
- Load capacity
- 3680 VA
- Maximum input current per phase
- 16 A
- Maximum power
- 3680 W
Certificates
- Certification
- cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Width
- 447 mm
- Depth
- 57.2 mm
- Height
- 44.5 mm
- Weight
- 2.05 kg
Packaging data
- Package weight
- 3.64 kg
- Package width
- 464 mm
- Package depth
- 229 mm
- Package height
- 70 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 55.19
