APCPower Distribution Units (PDUs)

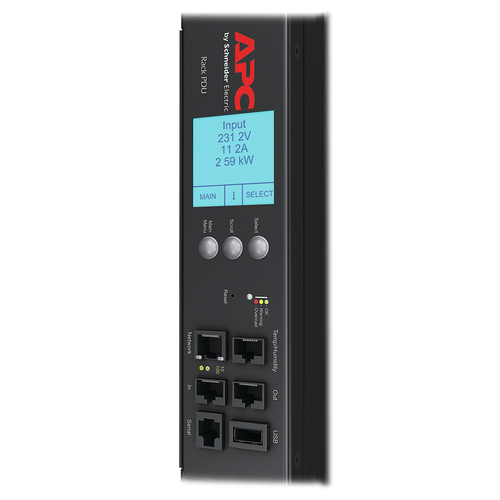

Rack PDU 2G, Switched, ZeroU, 11kW, 230V, (21) C13 & (3) C19
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

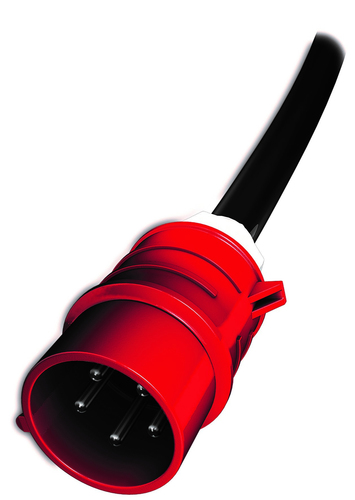

APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Specifications
Design
- PDU types
- Metered, Switched
- Rack capacity
- 0U
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- Input connection type
- IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
- Output connections
- (21) IEC 320 C13, (3) IEC 320 C19
Features
- Cable length
- 1.83 m
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50 - 60 Hz
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
Operational conditions
- Operating temperature (T-T)
- -25 - 65 °C
- Storage temperature (T-T)
- -5 - 45 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 46 mm
- Height
- 1791 mm
- Weight
- 7 kg
Packaging data
- Package weight
- 8.95 kg
- Package width
- 165 mm
- Package depth
- 114 mm
- Package height
- 2002 mm
