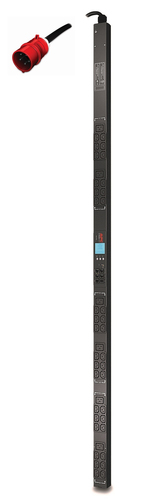

Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19
- Metered 0U Black
- 42 AC outlet(s) C13 coupler, C19 coupler
- 11000 W
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)
- Power plug
- IEC309
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
- Output connections
- 36x IEC 320 C13 6x IEC 320 C19
Features
- Cable length
- 1.83 m
Management features
- Monitoring
- Current, Power, Voltage
Power
- Nominal input voltage
- 400 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 16 A
- Nominal output voltage
- 230 V
- Load capacity
- 11040 VA
- Maximum input current per phase
- 16 A
- Maximum total current draw per phase
- 16 A
- Maximum power
- 11000 W
Certificates
- Certification
- CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
Operational conditions
- Operating temperature (T-T)
- 5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1791 mm
- Weight
- 6.38 kg
Logistics data
- Total carbon footprint (kg of CO2e)
- 41106.13
Downloads
