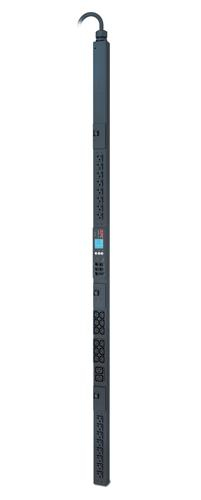

Rack PDU 2G power distribution unit (PDU) 30 AC outlet(s) Black
- Metered Black
- LED
- 30 AC outlet(s) C13 coupler, C19 coupler, NEMA 5–20R
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Rack PDU 2G, Metered, ZeroU, 30A, 100-120/200-240V, (16) 5-20R (12) C13 (2) C19
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Specifications
Design
- PDU types
- Metered
- Mounting
- Horizontal/Vertical
- Product colour
- Black
- Display
- LED
Ports & interfaces
- AC outlets quantity
- 30 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler, NEMA 5–20R
- Input connection type
- NEMA L14-30P
Features
- LED indicators
- Alarm
- Cable length
- 3 m
Management features
- Monitoring
- Current
Power
- Nominal input voltage
- 120-208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 30 A
- Output voltage
- 240 V
- Load capacity
- 5760 VA
- Maximum total current draw per phase
- 24 A
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 55 mm
- Depth
- 44 mm
- Height
- 1791 mm
- Weight
- 6.38 kg
Packaging content
- Packaging content
- Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
Packaging data
- Package weight
- 7.19 kg
- Package width
- 164 mm
- Package depth
- 108 mm
- Package height
- 2006 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 39890.99
