Rack PDU 2G, Metered ZeroU 10 okW 208V (36) C13 & (6) C19
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
Design
- PDU types
- Metered
- Rack capacity
- 0U
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)

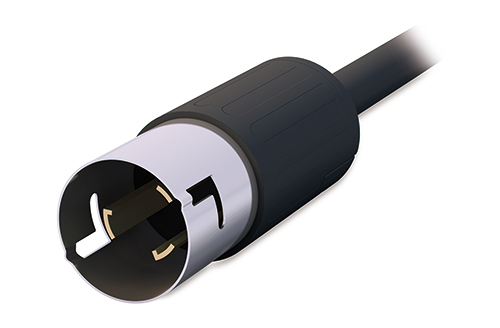

- Input connection type
- CS8365
- Output connections
- 36 x IEC 320 C13 6 x IEC 320 C19
Features
- Cable length
- 1.83 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 208 V
- Load capacity
- 10000 VA
- Maximum input current per phase
- 35 A
- Maximum total current draw per phase
- 35 A
- Power protection features
- Overload
Certificates
- Compliance certificates
- RoHS
- Certification
- cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 51 mm
- Height
- 1829 mm
- Weight
- 8.52 kg
Packaging data
- Package weight
- 11.4 kg
- Package width
- 170 mm
- Package depth
- 112 mm
- Package height
- 2050 mm
Logistics data
- Total carbon footprint (kg of CO2e)
- 51678.25
