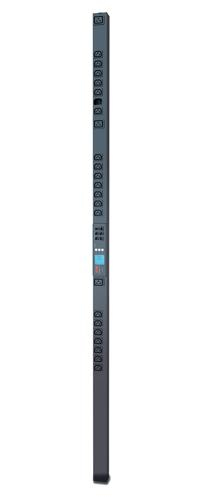

Rack PDU 2G, Metered-by-Outlet, ZeroU, 20A, 208V, (21) C13 & (3) C19

Part # AP8459NA3UPC 731304317579Warranty: 2 years18.9 lb

Metered Black
LCD
24 AC outlet(s) C13 coupler, C19 coupler

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

This APC Metered by Outlet Rack Power Distribution Units (PDUs) AP8459NA3 provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

Design

PDU types: Metered
Product colour: Black
Display: LCD

Ports & interfaces

AC outlets quantity: 24 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: NEMA L6-20P

Features

LED indicators: Alarm
Cable length: 3 m

Power

Nominal input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Maximum current: 20 A
Nominal output voltage: 208 V
Maximum total current draw per phase: 16 A

Certificates

Compliance certificates: RoHS
Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE, REACH
