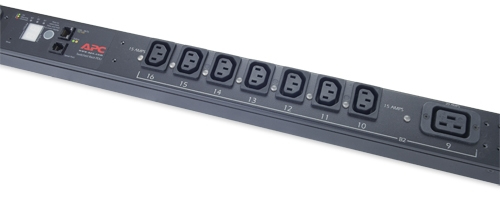

NetShelter Switched Rack PDU, Zero U, 12.5kW, 208V, 21 C13 and 3 C19 outlet, 3ft input cord

Name: APC NetShelter Switched Rack PDU, Zero U, 12.5kW, 208V, 21 C13 and 3 C19 outlet, 3ft input cord
Brand: APC
SKU: AP7968B

Part # AP7968BUPC 73130433165024 lb

Special orderPrice on request

View quote list

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Specifications

Design

PDU types: Monitored, Switched
Rack capacity: 0U
Mounting: Vertical
Product colour: Black

Ports & interfaces

AC outlets quantity: 24 AC outlet(s)
AC outlet types: C13 coupler, C19 coupler
Input connection type: CS8365

Features

Cable length: 0.91 m

Management features

Monitoring: Current
Outlet control: Recycle, Turn off
Firmware upgradeable: Yes
Firmware upgradeable via: Network

Power

Nominal input voltage: 208 V
AC input frequency: 50 - 60 Hz
Maximum current: 35 A
Nominal output voltage: 208 V
Load capacity: 12500 VA
Maximum total current draw per phase: 35 A
Power protection features: Overload

Certificates

Compliance certificates: RoHS
Certification: cUL, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL, REACH

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 15000 m

Weight & dimensions

Width: 56 mm
Depth: 89 mm
Height: 1778 mm
Weight: 8.08 kg

Packaging content

Packaging content: Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit
