Drag to turn · 3 views
APCPower Distribution Units (PDUs)

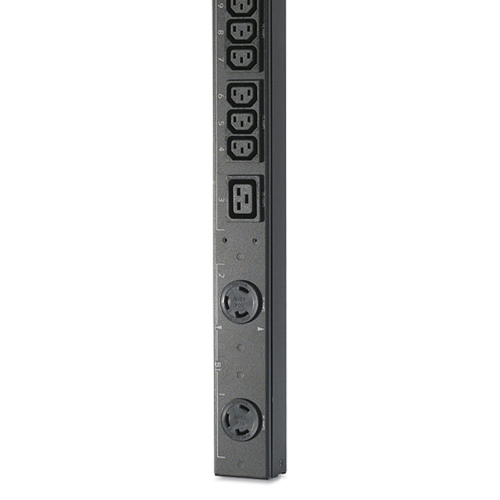

Rack PDU,Metered,ZeroU,14.4kW,208V,(24)C13,(4)C19,(2)L6-30R
- Three-phase Metered 0U Black
- 30 AC outlet(s) C13 coupler, C19 coupler, NEMA L6-30R
- 14400 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Design
- PDU types
- Metered
- Type
- Three-phase
- Rack capacity
- 0U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 30 AC outlet(s)
- Power plug
- CS8365
- AC outlet types
- C13 coupler, C19 coupler, NEMA L6-30R
Features
- Cable length
- 0.91 m
- Compatible products
- FCC Part 15 class A ICES-003 UL 60950
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 50 A
- Nominal output voltage
- 208 V
- Load capacity
- 14400 VA
- Number of phases
- 3
- Maximum power
- 14400 W
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Operating temperature (T-T)
- 23 - 113 °F
Weight & dimensions
- Width
- 56 mm
- Depth
- 95 mm
- Height
- 1778 mm
- Weight
- 10.4 kg
Packaging content
- Manual
- Yes
- Packaging content
- Cord retention bracket(s) Documentation CD Installation guide Rack Mounting brackets RS-232 configuration cable Toolless Mounting Kit
Packaging data
- Package weight
- 14.3 kg
- Package width
- 79 mm
- Package depth
- 311 mm
- Package height
- 2057 mm
