APCPower Distribution Units (PDUs)

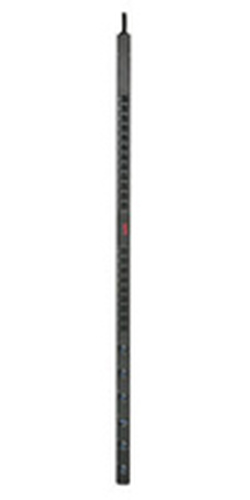

Rack PDU,Basic, Zero U,5.7kW,120&208V power distribution unit (PDU) Black
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
01
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Specifications
Design
- Product colour
- Black
Ports & interfaces
- Input connection type
- NEMA L21-20P
- Output connections
- 21x NEMA 5-20R 6x NEMA L6-20R
Features
- Cable length
- 0.91 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Load capacity
- 5700 VA
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
Certificates
- Certification
- cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS 7b Exemption
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1778 mm
- Weight
- 5.46 kg
Downloads
