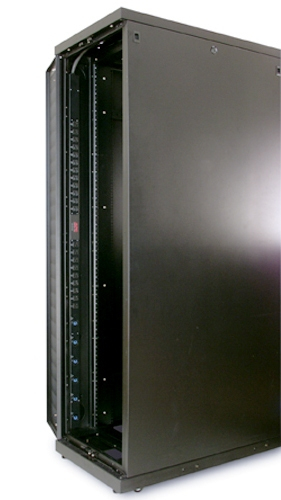

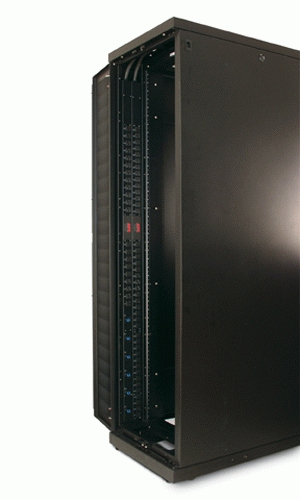

Basic Rack 4160VA power distribution unit (PDU) Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
-Redundant Internal Power Supplies.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
Design
- Product colour
- Black
Ports & interfaces
- Input connection type
- NEMA L6-20P
- Output connections
- (20) IEC 320 C13 (4) IEC 320 C19
Features
- Cable length
- 3.05 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Nominal output voltage
- 208 V
- Load capacity
- 3328 VA
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
Certificates
- Certification
- cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 56 mm
- Depth
- 44 mm
- Height
- 1619 mm
- Weight
- 4.86 kg
