APCPower Distribution Units (PDUs)

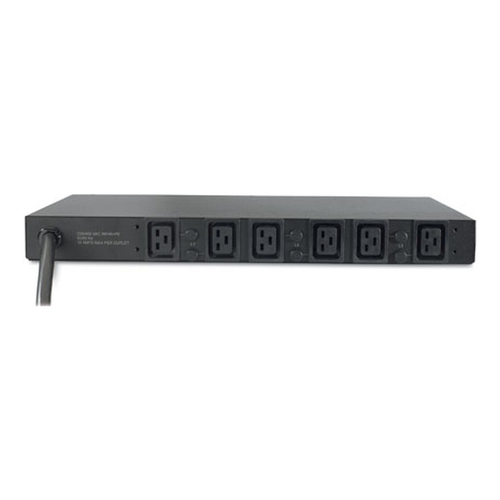

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
- Provides remote management of the UPS over the network.
- 1 U design for efficient use of rack space
- Supports up to 50A, 208V power distribution
- Includes toolless mounting kit for quick setup
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

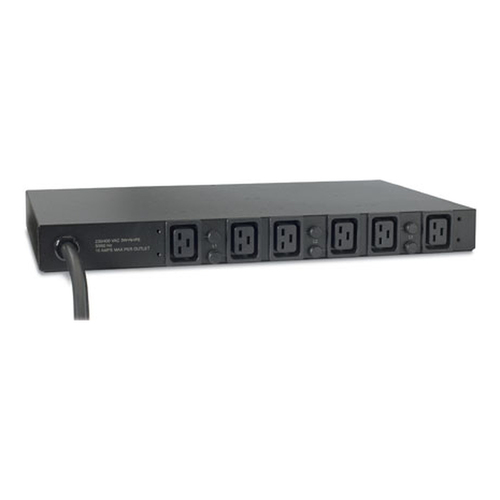

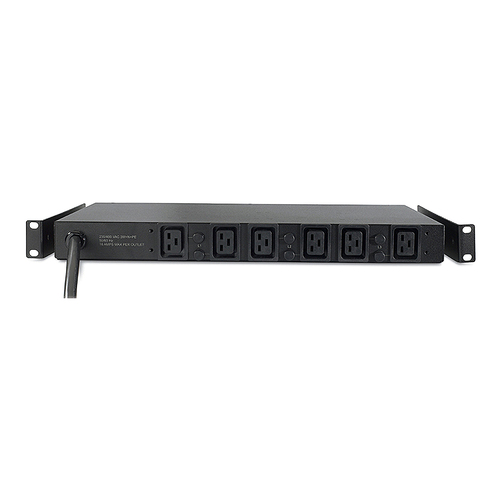

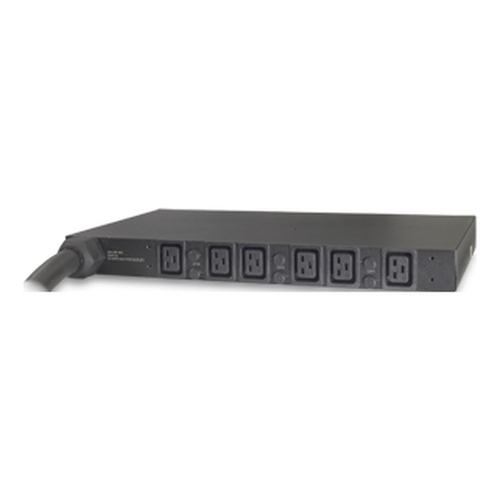

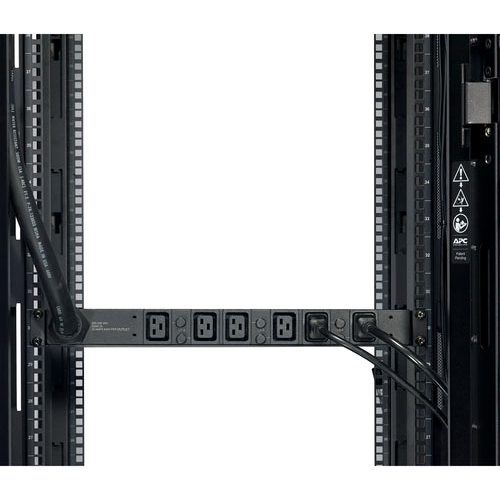

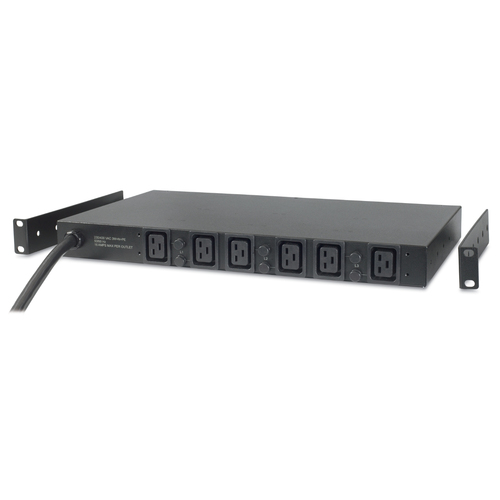

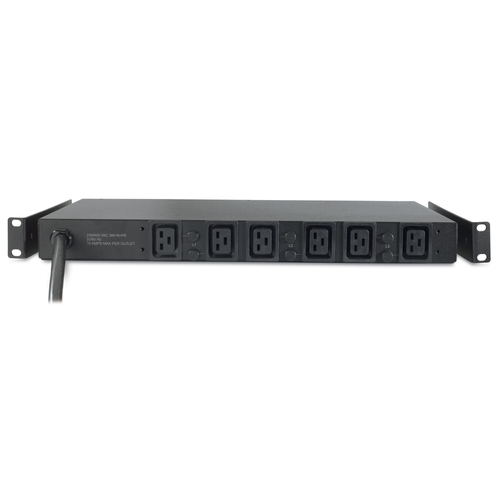

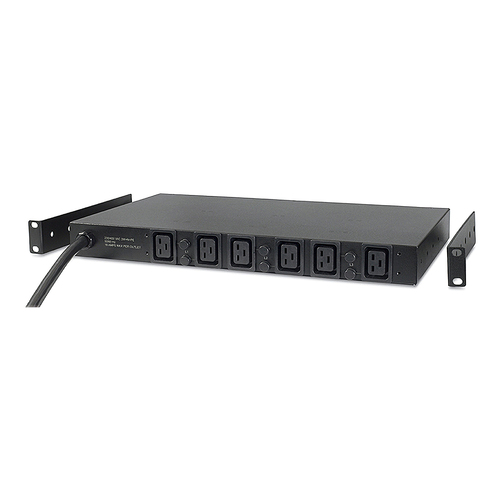

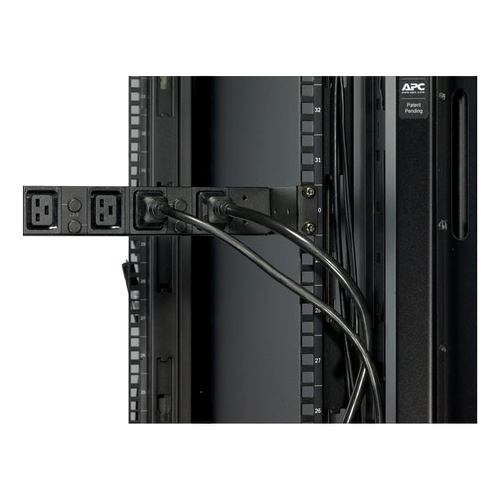

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Specifications
Design
- Rack capacity
- 1U
- Product colour
- Black
Ports & interfaces
- Input connection type
- Hubbell CS8365C
- Output connections
- (6) IEC 320 C19
Features
- Cable length
- 2.4 m
Power
- Nominal input voltage
- 208 3 phases
- AC input frequency
- 50 - 60 Hz
- Output voltage
- 200 V; 208 V
- Number of phases
- 3
- Maximum input current per phase
- 50 A
- Maximum total current draw per phase
- 40 A
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Compliance certificates
- RoHS, REACH, WEEE
- Certification
- cUL listed; METI Denan; UL listed
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 437 mm
- Depth
- 254 mm
- Height
- 44 mm
- Weight
- 7.98 kg
Technical details
- Sustainable packaging
- No
- Packaging recycled materials
- Recycled cardboard
- Halogen free
- No
- Preferred mounting position
- no preference
- Take-back system
- No
- Packaging without single use plastic
- No
Logistics data
- Country of origin
- India
- Customs product code (TARIC)
- 8544429090
- Total carbon footprint (kg of CO2e)
- 23327.5911925625
