Intel Core i51240P OPS Slotin PC for ViewSonic ViewBoard , Windows 11 Pro, 16GB, 256GB SSD, WiFi6.
- Windows 11 Pro
- Ideal Integrated Solution for ViewBoard® Interactive Displays and Presentation Display
- Powerful Intel® 12th Core Processors embeded TPM2.0
- Improved System Stability, Security, & Thermal Control
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

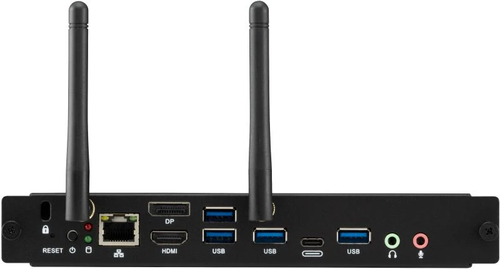

Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPC35-W53-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 16GB DDR4 memory, and 256GB SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.1, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.
Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 12th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.1, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.
Stability in every lesson
Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC35-W53-G1 intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.
Stay cool and blaze through classes

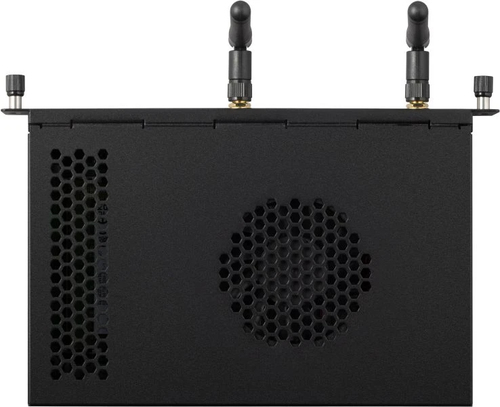

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.
Boot up with total security
Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.
Built-in myViewBoard software
The VPC35-W53-G1 seamlessly integrates with myViewBoard software, offering teachers a wide range of interactive lesson and presentation possibilities. Effortlessly prepare, save, and share class materials across various platforms in an instant.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- 12th gen Intel® Core™ i5
- Processor model
- i5-1240P
- Processor cores
- 6
- Processor boost frequency
- 3.6 GHz
- Processor frequency
- 2 GHz
- Processor cache
- 12 MB
- Configurable TDP-down
- 25 W
- Configurable TDP-down frequency
- 1.3 GHz
Memory
- Internal memory
- 8 GB
- Maximum internal memory
- 8 GB
- Internal memory type
- DDR4-SDRAM
Storage
- Total storage capacity
- 256 GB
- Storage media
- SSD
- Optical drive type
- No
- Total SSDs capacity
- 256 GB
- Number of SSDs installed
- 1
- SSD capacity
- 256 GB
- SSD interface
- PCI Express, SATA III
- SSD form factor
- M.2
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Yes
- Discrete graphics card model
- Not available
- On-board GPU manufacturer
- Intel
- On-board graphics card family
- Intel® UHD Graphics
- On-board graphics card model
- Intel® UHD Graphics 630
Performance
- Motherboard chipset
- Intel H410
- Product type
- Mini PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.2
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- DisplayPorts quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.0
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
Power
- Power supply input voltage
- 110 - 240 V
- Power supply input frequency
- 50 - 60 Hz
Design
- Chassis type
- Slot-in PC
- Colour name
- Black
- Product colour
- Black
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 11 Pro
- Bundled software
- myViewBoard for Window /Adobe reader /Winflash /Watch Dog
Processor special features
- Intel 64
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Embedded options available
- No
- Intel Clear Video Technology
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Idle States
- Yes
- Intel Stable Image Platform Program (SIPP)
- No
- Intel Trusted Execution Technology
- No
- Execute Disable Bit
- Yes
- Intel Software Guard Extensions (Intel SGX)
- Yes
- CPU configuration (max)
- 1
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Display
- Display included
- No
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Operating relative humidity (H-H)
- 10 - 90%
Weight & dimensions
- Width
- 246.2 mm
- Depth
- 32.2 mm
- Height
- 263.4 mm
- Weight
- 600 g
Packaging data
- Package width
- 267 mm
- Package depth
- 192 mm
- Package height
- 72 mm
- Package weight
- 970 g
Certificates
- Compliance certificates
- CE, REACH, RoHS, WEEE
- Certification
- cTUVus, FCC, FCC ID, IC ID, CE, RED, CB, BSMI, NCC, RoHS, ErP, REACH, WEEE
Sustainability
- Sustainability certificates
- ErP
Logistics data
- Pallet gross width
- 168 cm
- Pallet gross length
- 114 cm
- Pallet gross height
- 100 cm
- Harmonized System (HS) code
- 8471410000
- Products per master (outer) case
- 10 pc(s)
